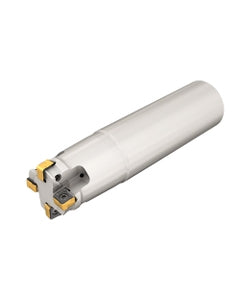

S890 ESZ D1.25-4-C1.25R08
Item #: EH313423224
Brand: Iscar
Model #: 3423224
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 1-1/4″ |
| Head Length (LH) | 1-3/4″ |
| Cutting Diameter (DC) | 1-1/4″ |
| Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 4 |
| Flute Count (NOF) | 4 |
| Depth of Cut Maximum (APMX) | 0.2″ |
| Coolant Supply Property (CSP) | Through Hole |
| Overall Length (OAL) | 5″ |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| Application | | Shouldering | Slotting | |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
| Body Material | Steel |
| Master Insert Identification (MIID) | S890 SZMU 0804 |
| Connection Code Machine Side (CCMS) | Disk type |
