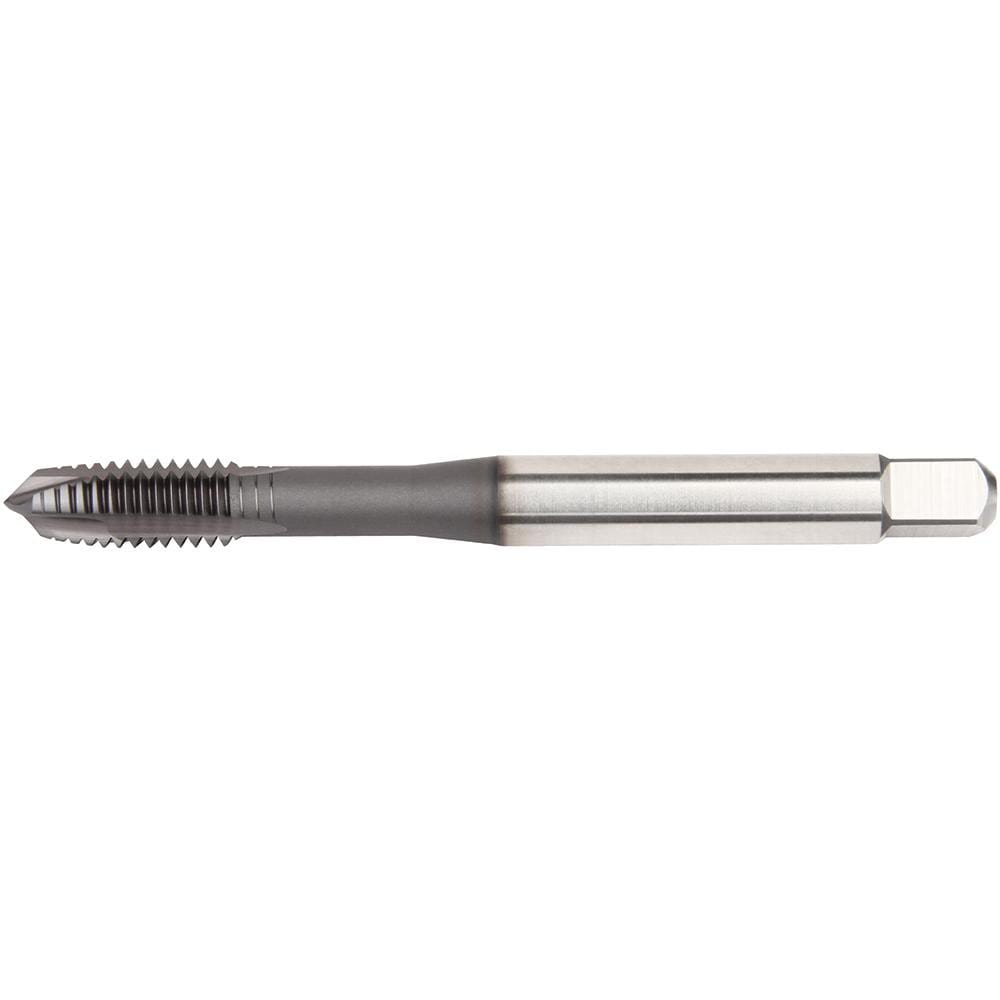

Brand: Widia / Part #: 5368176
Item #: 90868977
Brand: Widia
Model #: 5368176
Product Specifications
| Thread Size (mm) | M5x0.8 |
| Number Of Flutes | 2 |
| Chamfer | Plug |
| Thread Limit | 6H |
| Class Of Fit | 6H |
| Coating/Finish | TiCN |
| Threads per Inch | 32 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (mm) | 24.70 |
| Thread Pitch (mm) | 0.80 |
| Thread Standard | Metric |
| Material Grade | WP42EG |
| Thread Length (mm) | 12.00 |
| Overall Length (mm) | 69.7000 |
| Shank Diameter (Decimal Inch) | 0.1940 |
| Square Length (mm) | 6.40 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | VT-SPO |
