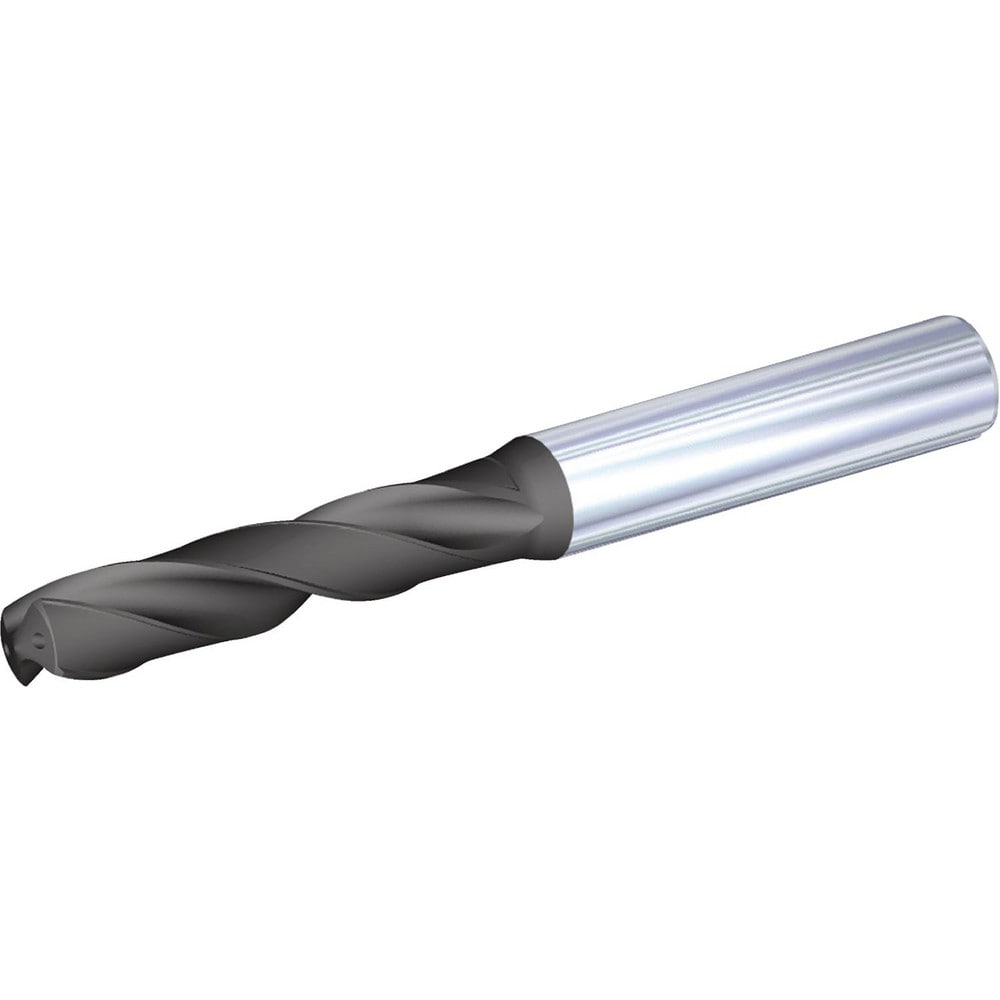

Brand: Widia / Part #: 4156673
Item #: 99253320
Brand: Widia
Model #: 4156673
Product Specifications
| Drill Bit Size (Inch) | 5/8 |
| Drill Bit Size (Decimal Inch) | 0.6250 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | AlCrN |
| Drill Point Angle | 140 |
| Spiral Type | Regular Spiral |
| Flute Type | Helical |
| Point Type | Thinned |
| Coolant Through | Yes |
| Shank Type | Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Drill Tip Finish/Coating | AlCrN |
| Overall Length (Decimal Inch) | 4.5276 |
| Series | TDS411 |
| Web Thinning | Web-Thinned |
| Number of Margins | 4.000 |
| Drill Length Type | Screw Machine Length |
| Maximum Drilling Depth (Decimal Inch) | 1.7717 |
| Shank Length (Inch) | 1-57/64 |
| Shank Length (Decimal Inch) | 1.8898 |
| Drill Point Length (Decimal Inch) | 0.1081 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | Heavy-Duty |
| Drill Bit Diameter Tolerance | 0.0003/ 0.0010 in |
| Flute Length (Decimal Inch) | 2.5591 |
| Drill Bit Grade | High Performance |
| Material Grade | Carbide |
