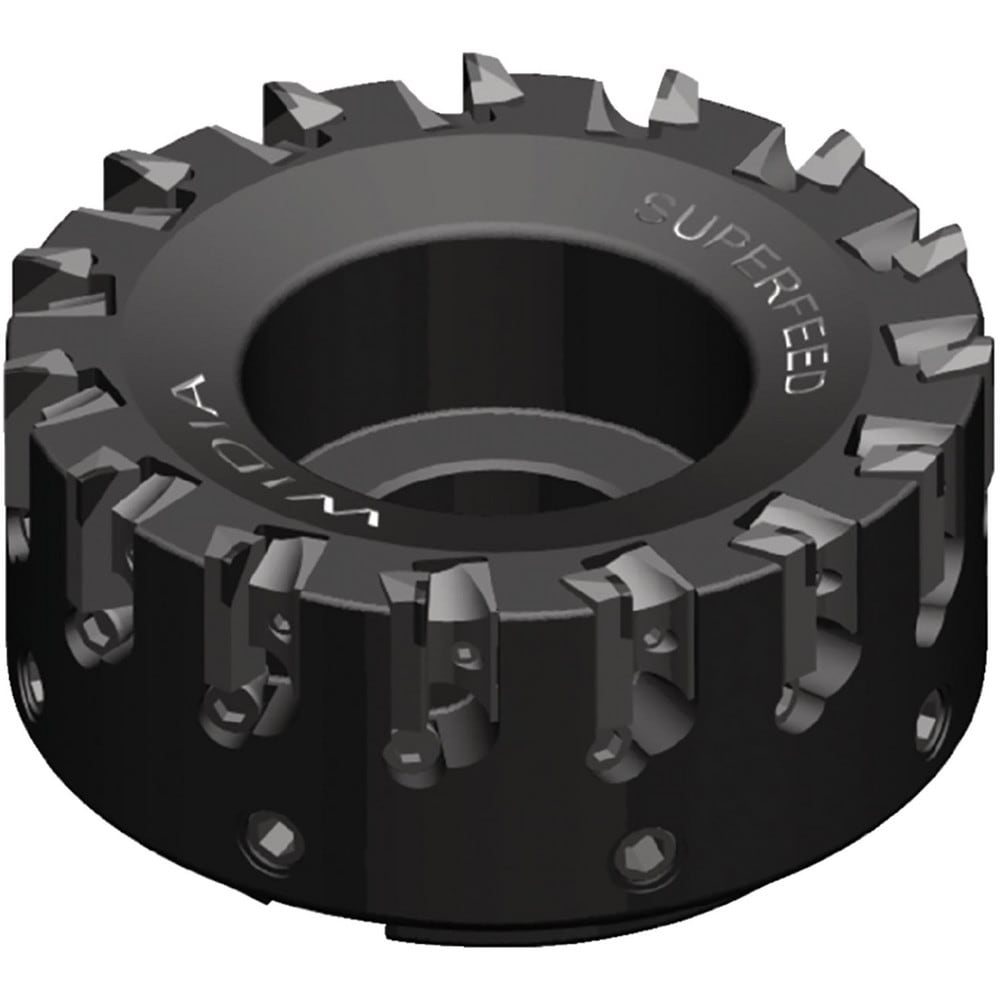

Brand: Widia / Part #: 2646760
Item #: 09972225
Brand: Widia
Model #: 2646760
Product Specifications
Minimum Cutting Diameter (Decimal Inch) | 5.0000 |
Maximum Cutting Diameter (Decimal Inch) | 5.0000 |
Maximum Depth of Cut (Decimal Inch) | 0.2500 |
Arbor Hole Diameter (Decimal Inch) | 1.5000 |
Compatible Insert Size Code | SDR1000 |
Maximum Ramping Angle | 0 |
Cutter Style | Superfeed |
Cutting Direction | Right Hand |
Insert Holding Method | Wedge |
Lead Angle | 90 |
Rake | Positive |
Series | Superfeed |
Maximum Body Diameter (Decimal Inch) | 1.5000 |
Overall Height (Decimal Inch) | 2.3750 |
Keyway Width (mm) | 16.13 |
Hub Diameter (Decimal Inch) | 4.8800 |
Maximum RPM | 15500.000 |
Tool Application | Facing; Milling |
Tool Performance | High Performance |
Primary Workpiece Material | Non-Ferrous Metal |
Primary Workpiece Material Code | N |
Number of Adjustable Pockets | 15 |
ISO Number | SF0515RH |
Complete Insert Compatibility | SDR1000 |
Toolholder Material | Aluminum |
Manufacturers Catalog Number | SF0515RH |
Coolant Through | Yes |
Number Of Cutter Inserts | 15 |
Number Of Flutes | 15 |
