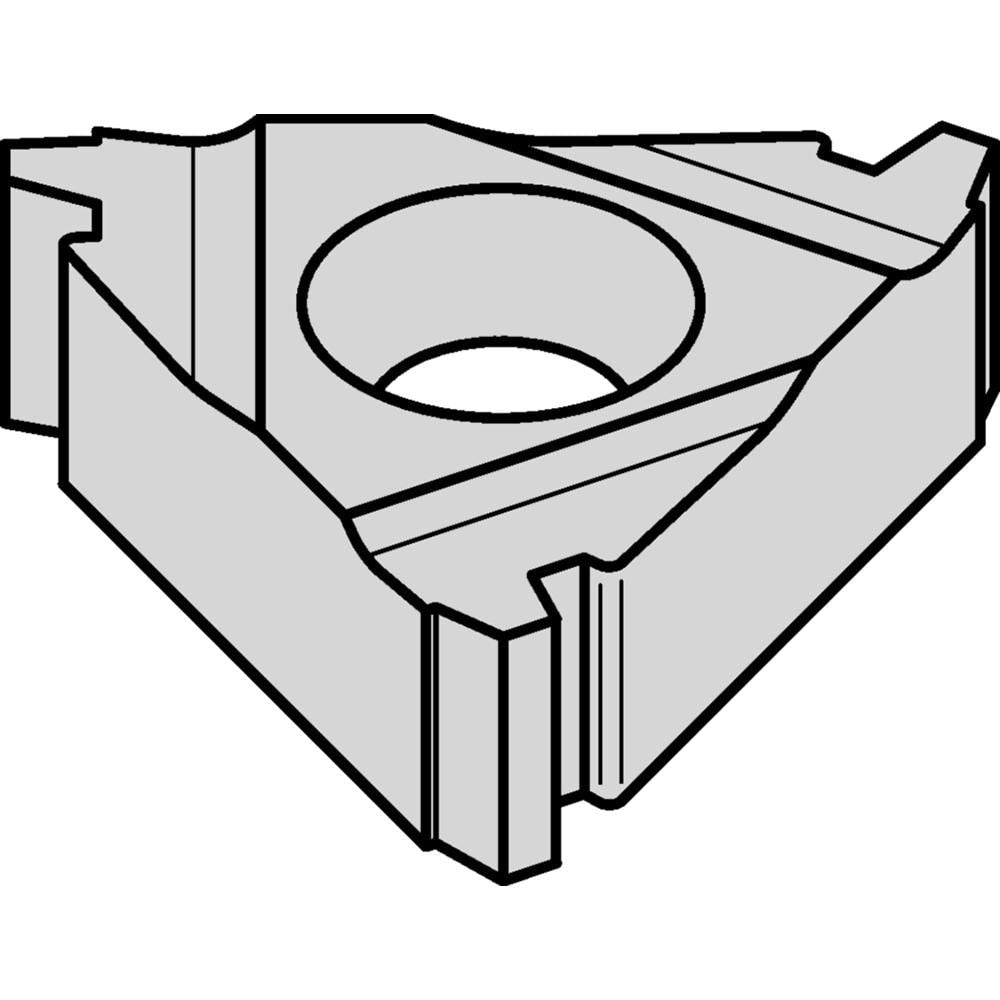

Brand: Widia / Part #: 2019511

Brand: Widia / Part #: 2019511


Item #: 99574469
Brand: Widia
Model #: 2019511

Product Specifications

Insert Style IR
Insert Size Code 3
Insert Material Carbide
Manufacturer Grade TN6025
Material Grade TiAlN
Thread Type Internal
Pitch (mm) 3.00
Thread Standard TR
Insert Hand Right Hand
Included Angle 30.00
Chipbreaker None
Series 3IR
Coating Process PVD
Inscribed Circle (Inch) 3/8
Hole Diameter (Decimal Inch) 0.1550
Rake Positive
Primary Workpiece Material Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M
Secondary Workpiece Material Non-Ferrous Metal
Secondary Workpiece Material Code N
Ansi Code 3IR3TR
Iso Code 3IR3TR
Cutting Edge to Theoretical Edge Length (Decimal Inch) 0.059
Face of Insert to Tip Centerline (Decimal Inch) 0.051
Number of Teeth Per Side 1
Cutting Direction Right Hand
Manufacturers Catalog Number 3IR3TR
Coating Classification PVD
Thickness (Decimal Inch - 4 Decimals) 0.1350
Coating/Finish TiAlN
$26.68

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
