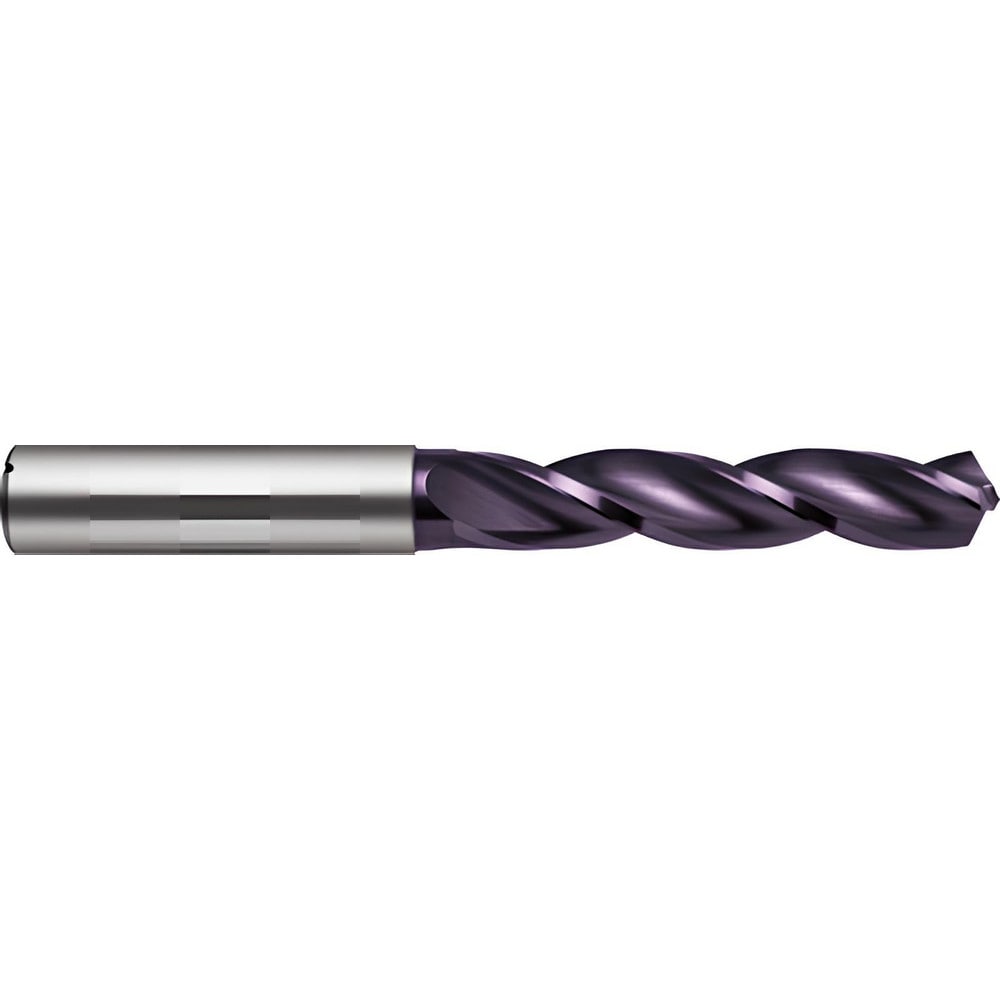

Brand: Guhring / Part #: 9065900107200
Item #: 74656570
Brand: Guhring
Model #: 9065900107200
Product Specifications
Drill Bit Size (Decimal Inch) | 0.4220 |
Drill Bit Size (Inch) | 27/64 |
Drill Bit Material | Solid Carbide |
Cutting Direction | Right Hand |
Drill Bit Finish/Coating | Nano-FIREX |
Drill Point Angle (Degrees) | 130 |
Spiral Type | Regular Spiral |
Flute Type | Helical |
Point Type | Special Point Type |
Coolant Through | Yes |
Shank Type | Straight |
Number of Flutes | 3 |
Overall Length (mm) | 118.0000 |
Flute Length (mm) | 71.00 |
Series | 6590 |
Tool Application | Drilling; Self-Centering |
Flute Length x Diamter Ratio | 5xD |
Shank Diameter (mm) | 12.0000 |
Maximum Drilling Depth (mm) | 54.92 |
Shank Length (mm) | 45.000 |
Drill Bit Diameter Tolerance | m7 |
Tool Performance | High Performance |
