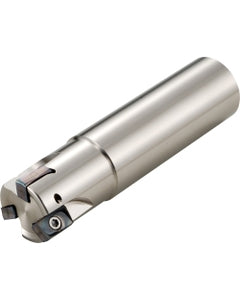

MEW 40S32153T Standard Length Shank, 90 Degree End Mill
Item #: KY96THN05061
Brand: Kyocera Precision Tools
Model #: THN05061
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 40 mm |
| Usable Length (LU) | 15 mm |
| Cutting Diameter (DC) | 40 mm |
| Flute Count (NOF) | 3 |
| Cutting Diameter Maximum (DCX) | 40 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 3 |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.5906″ |
| Style | MEW |
| Overall Length (OAL) | 150 mm |
| Cutting Direction (HAND) | Right Hand |
| Application | Facing | Plunging | Shouldering | Slotting |
| Angle | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Series/List # | MEW |
| Master Insert Identification (MIID) | LOMU1505 | LOGT1505 |
| Measurement Type | Metric |
| Weight of Item (WT) | 2.5331 |
| Model Number | 8835597 |
| Head Length (LH) | 50 mm |
| Body Material | Steel |
| Functional Length (LF) | 150 mm |
| Shank Length (LS) | 100 mm |
