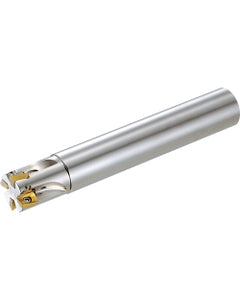

MECX 26S25160075T Long Length Shank, 90 Degree End Mill
Item #: KY96THN03571
Brand: Kyocera Precision Tools
Model #: THN03571
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 26 mm |
| Usable Length (LU) | 6 mm |
| Cutting Diameter (DC) | 26 mm |
| Flute Count (NOF) | 5 |
| Cutting Diameter Maximum (DCX) | 26 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 5 |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.2362″ |
| Style | MECX |
| Overall Length (OAL) | 160 mm |
| Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 1.2 Degrees |
| Angle | 90 Degrees |
| Application | Facing | Helical Milling | Ramping | Shouldering | Slotting |
| Series/List # | MECX |
| Connection Diameter Machine Side (DCONMS) | 25 mm |
| Measurement Type | Metric |
| Master Insert Identification (MIID) | BDMT0703ER-JT | BDMT0703ER-JS |
| Model Number | 8822901 |
| Weight of Item (WT) | 1.2324 |
| Body Material | Steel |
| Head Length (LH) | 25 mm |
| Shank Length (LS) | 135 mm |
| Functional Length (LF) | 160 mm |
