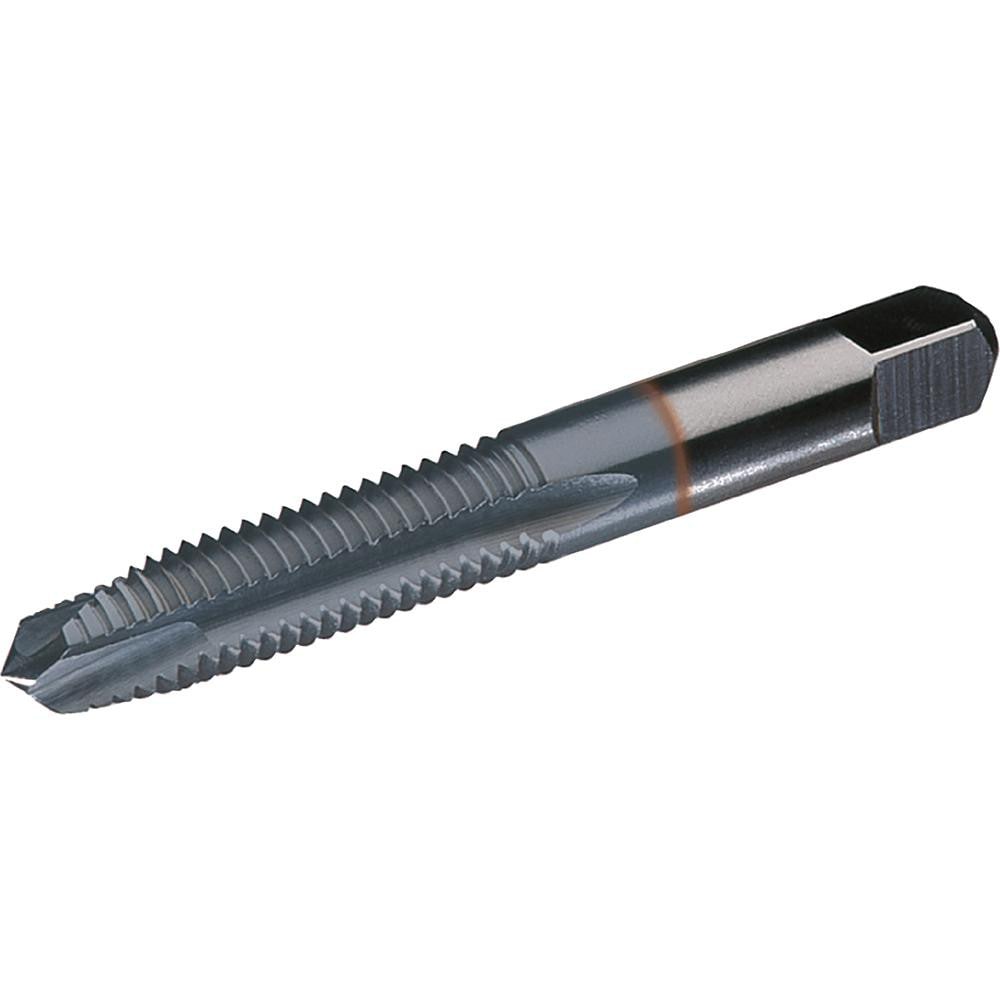

Brand: Widia / Part #: 2746974
Item #: 93080729
Brand: Widia
Model #: 2746974
Product Specifications
| Thread Size (Inch) | 5/16-24 |
| Number Of Flutes | 3 |
| Chamfer | Plug |
| Thread Limit | H4 |
| Class Of Fit | H4 |
| Coating/Finish | TiCN |
| Threads per Inch | 24 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (Decimal Inch) | 1.1250 |
| Thread Pitch (Decimal Inch) | 0.0417 |
| Thread Standard | UNC |
| Thread Length (Decimal Inch) | 1.1250 |
| Overall Length (Decimal Inch) | 2.7188 |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Square Size (Decimal Inch) | 0.2380 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | 5301/2301 |
