Brand: Ingersoll Cutting Tools / Part #: 6126858
Item #: 67302422
Brand: Ingersoll Cutting Tools
Model #: 6126858
Product Specifications
| Insert Style | UNEU |
| Insert Size Code | 1307 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2504 |

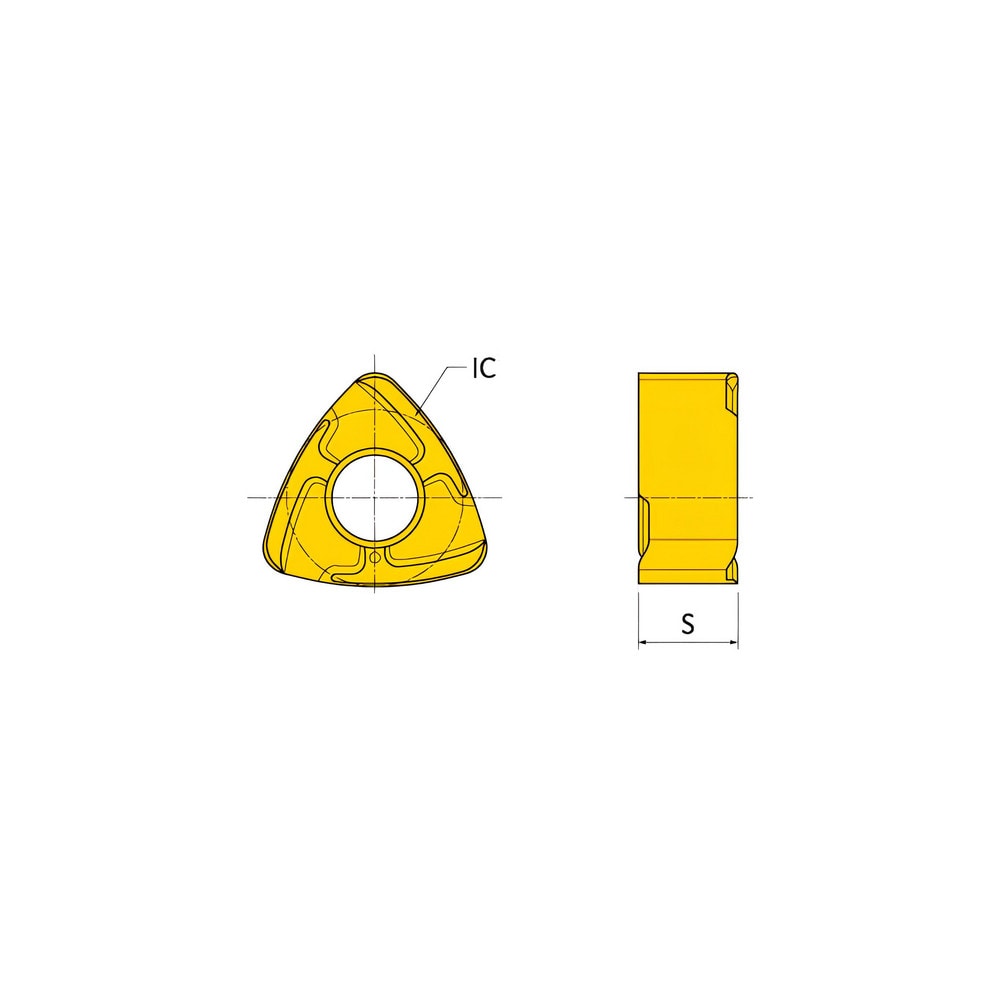

| Inscribed Circle (mm) | 13.00 |
| Corner Radius (Decimal Inch) | 0.0710 |
| Insert Hand | Right Hand |
| Series | UNEU |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.0780 |
| Number Of Cutting Edges | 6 |
| Insert Shape | Triangle |
| Rake | Negative |
| Primary Workpiece Material | Hard Material; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K |
| Ansi Code | UNEU1307R-M |
| Rake Angle | 0.000 |
| Manufacturers Catalog Number | UNEU1307R-M IN2504 |
| Cutter Series Compatibility | DG5P; DG6P; 4W2A; DG1P |
| Chip Breaker | M |
| Cutting Direction | Right Hand |
| Shape | Triangle |
| Insert Holding Method | Screw |
| Thickness (mm) | 7.0000 |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 60 |
| Multi-Use Tool | Yes |
