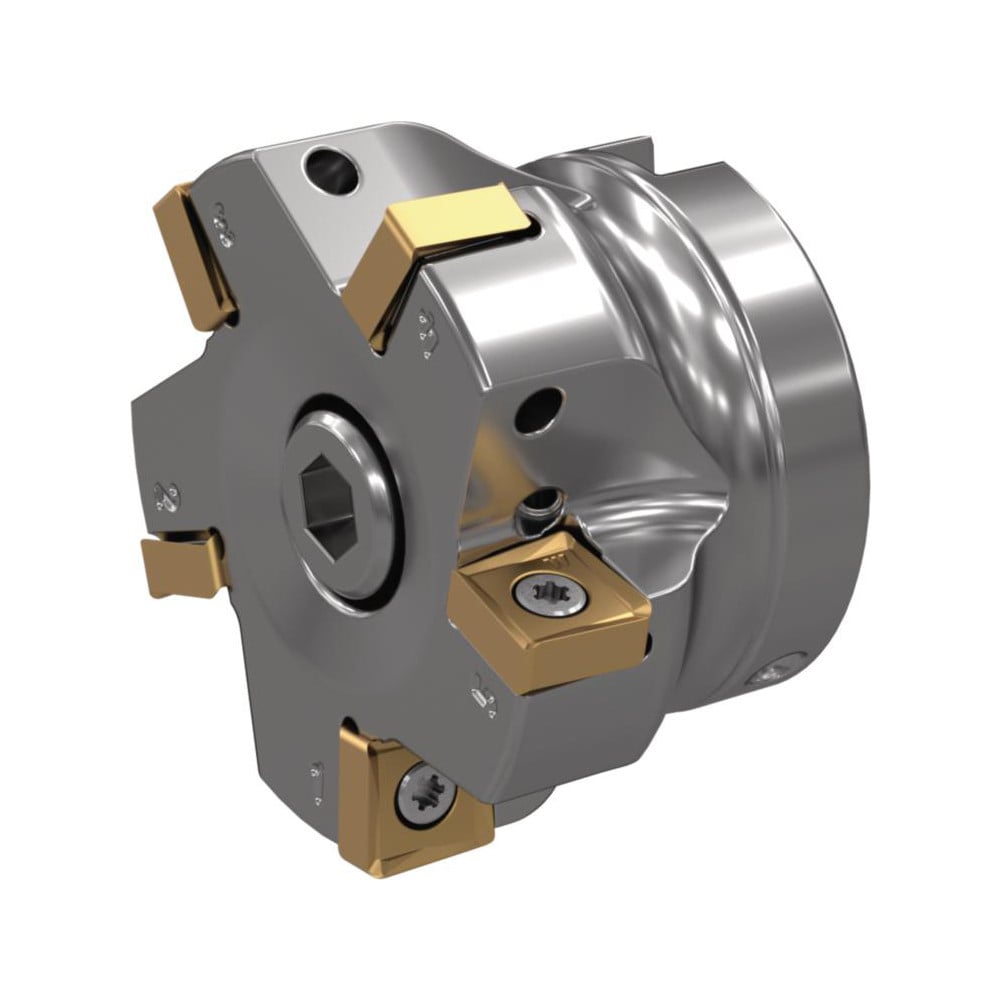

Brand: Widia / Part #: 6596117

Brand: Widia / Part #: 6596117


Item #: 09784810
Brand: Widia
Model #: 6596117

Product Specifications

Minimum Cutting Diameter (mm) 100.00
Maximum Cutting Diameter (mm) 100.00
Maximum Depth of Cut (mm) 9.80
Arbor Hole Diameter (mm) 32.00
Compatible Insert Size Code SNHX1204..
Maximum Ramping Angle 0
Cutter Style VSM
Cutting Direction Right Hand
Insert Holding Method Screw
Lead Angle 90
Rake Negative (Radial); Positive (Axial)
Rake Angle -13.000
Series VSM890
Maximum Body Diameter (mm) 97.50
Overall Height (Mm - 5 Decimals) 50.00000
Keyway Width (mm) 14.48
Hub Diameter (mm) 78.000
Maximum RPM 15800.000
Tool Application Milling; Slotting
Tool Performance General Purpose
Primary Workpiece Material Universal
Number of Adjustable Pockets 0
ISO Number VSM890D100Z11S32SN12
Coolant Hole Diameter (Decimal Inch) 0.1181
Complete Insert Compatibility SNHX120408PNERMM
Toolholder Material Steel
Manufacturers Catalog Number VSM890D100Z11S32SN12
Coolant Through Yes
Number Of Cutter Inserts 11
Number Of Flutes 11
$733.93

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
