16" 16-Speed Step Pulley Drill Press Floor 115V - Industrial Tool & Supply

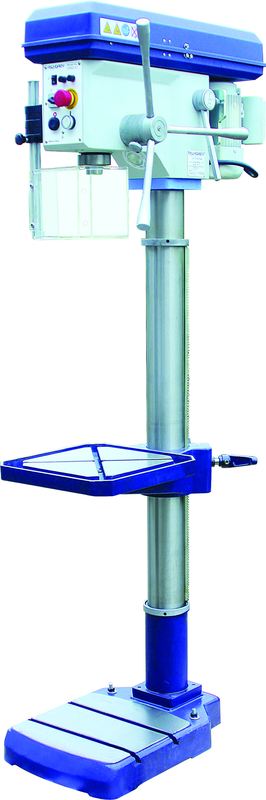

16" 16-Speed Step Pulley Drill Press Floor 115V


Item #: JB559680214
Manufacturer: Palmgren
Mfg #: 9680214

Technical Specifications:
•Brand Name: Palmgren •Column Diameter: 3.622 •Drilling Capacity: 1.103 •Model Number: 9680214 •Motor: 1HP, 115V, 1PH •Range of Speeds: 150 - 4000 RPM •Spindle to Table (max.): 33.858 •Spindle Taper: 3MT •Swing: 16 •Table Size: 13.386 x 14.173 •Type: Step Pulley Floor Model Drill Press •Weight: 1309 lbs

Description:
•Palmgren premier line of step pulley drill presses have a wide range of speeds and are constructed through-out to form a solid base for heavy, accurate continuous use •The pulleys are long wearing aluminum alloy, fully machined and balanced •Combined with a Gates 7M industrial V-ribbed V-belt that delivers better gripping and power with a service life of 10,000 hours •Speed changes are fast and easy – our exclusive quick change handle and motor spring plate provides consistent, proper tension from the motor to the belt and pulleys all the time •The fully enclosed machine tool spindle has a concentricity of 0.0005" at the spindle nose •These drills can be used to perform all hole making operations – drilling, tapping, reaming, boring, spot-facing, counterboring and chamfering in any type of material •Built in halogen work light •Forward & reverse switch •Drill depth stop •Digital depth gauge (9680216) •Digital speed display (9680216) •T-slotted table and base •Interlocking spindle safety guard •Electric interlock on the pulley cover •Magnetic overload protection •3 Year Warranty

Shipping Info:
•Commercial Truck - Call for Shipping Charges •Actual Weight - 1309.0000
$3,586.28
