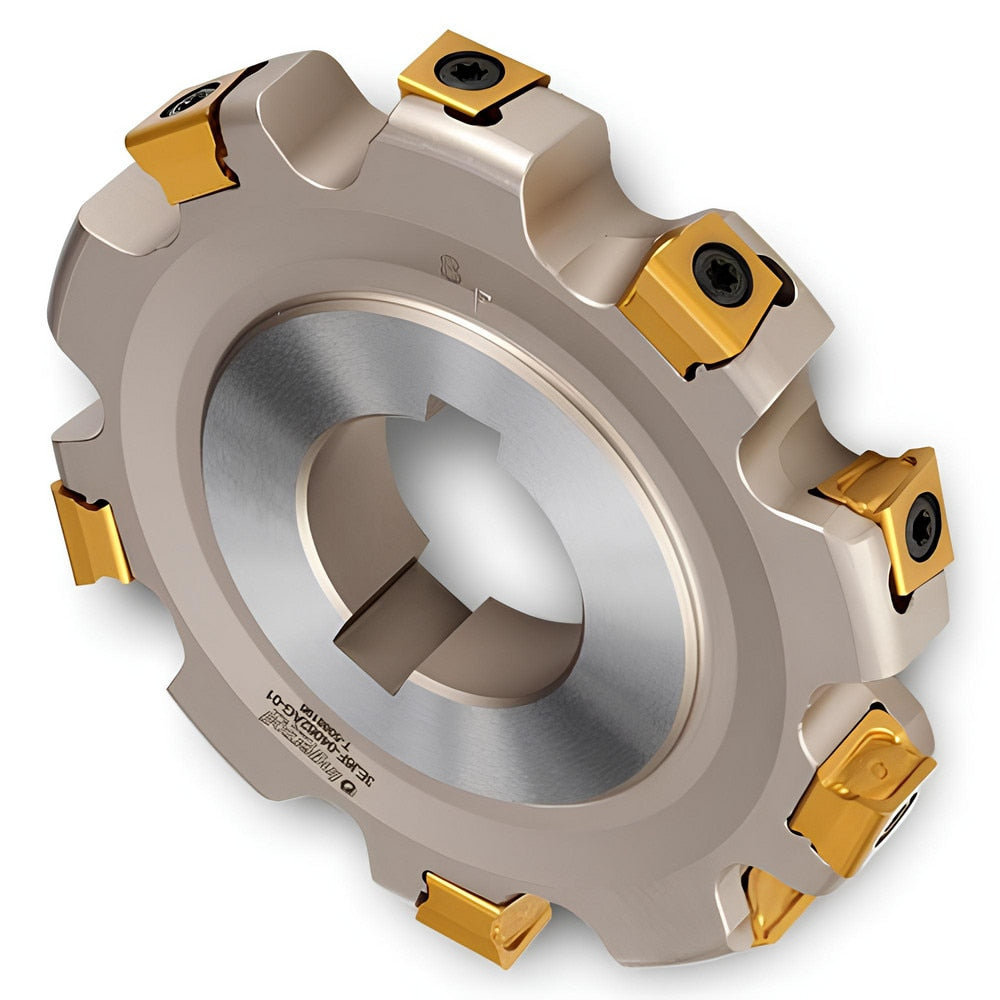

Brand: Ingersoll Cutting Tools / Part #: 3030867
Item #: 98630544
Brand: Ingersoll Cutting Tools
Model #: 3030867
Product Specifications
| Connection Type | Arbor Hole |
| Cutting Width (Inch) | 3/4 |
| Maximum Depth of Cut (Decimal Inch) | 2.2500 |
| Hole Diameter (Inch) | 2 |
| Cutter Diameter (Inch) | 8 |
| Shank Diameter (Decimal Inch) | 0.0000 |
| Shank Length (Decimal Inch) | 0.0000 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 16 |
| Compatible Insert Style | DGM |
| Compatible Insert Size Code | 325 |
| Staggered Tooth | Yes |
| Tooth Type | Staggered Tooth |
| Rake | Negative |
| Tool Material | Steel |
| Series | 3EJ6J |
| Toolholder Style | 3EJ6J |
| Hub Diameter (Inch) | 3-1/2 |
| Keyway Width (Inch) | 1/2 |
| Tool Application | Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Maximum Cutting Width (Decimal Inch) | 0.7500 |
| Maximum Body Diameter (Decimal Inch) | 8.0000 |
| Cutter Body Width (Decimal Inch) | 0.7500 |
| Weldon Flat | No |
| Manufacturers Catalog Number | 3EJ6J-08075AK-01 |
| Overall Length (Decimal Inch) | 0.7200 |
| Number Of Teeth | 16 |
| Coolant Through | No |
| Complete Insert Compatibility | DGM325.. |
| Coating/Finish | Coated |
