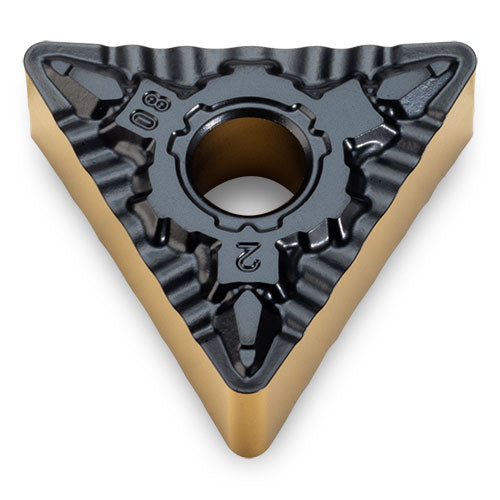

TNMG331MLP TT8115B
Item #: IC066308045
Brand: Ingersoll
Model #: 6308045
| Product Specifications | |
|---|---|
| Insert Style | TNMG |
| Depth of Cut Maximum (APMX) | 0.1″ |
| Corner Radius (RE) | 0.016″ |
| Min. Turning Feed (ft(min)) | 0.003″ |
| Insert Size | 160404 |
| Max. Turning Feed (ft(max)) | 0.012″ |
| Cutting Edge Length (L) | 0.65″ |
| Number of Cutting Edges | 6 |
| Insert Thickness (S) | 0.187″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees |
| Body Material | Carbide |
| Min D.O.C. | 0.01″ |
