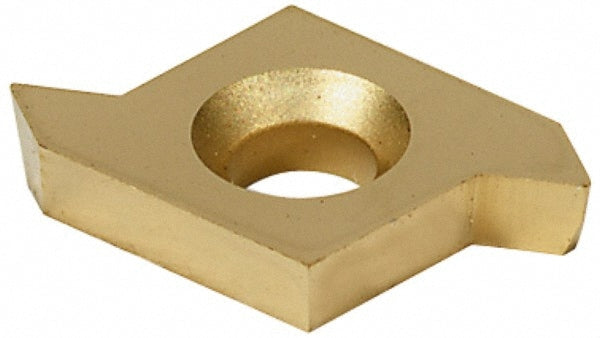

Brand: Widia / Part #: 2824523
Item #: 70730478
Brand: Widia
Model #: 2824523
Product Specifications
| Insert Style | CPT |
| Insert Material | Carbide |
| Manufacturer Grade | CM1 |
| Thread Type | Internal |
| Material Grade | Ultra Fine Grain |
| Thread Standard | Metric |
| Insert Hand | Right Hand |
| Internal Pitch | 1.0-2.5 |
| Included Angle | 60.00 |
| Chipbreaker | No |
| Series | CPT |
| Coating Process | Uncoated |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Tip to Top of Insert (Decimal Inch) | 0.0750 |
| Corner Radius (Decimal Inch) | 0.0050 |
| Ansi Code | CPT20052R |
| Iso Code | CPT20052R |
| Maximum Corner Radius (Decimal Inch) | 0.0050 |
| Width of Cutting Tip (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (Decimal Inch) | 0.0650 |
| Coating Classification | Uncoated |
| Shape | Diamond |
| Insert Holding Method | Screw |
| Insert Size | 2-005-2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.0750 |
| Finish Coating | Bright/Uncoated |
| Coolant Through | No |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.7900 |
