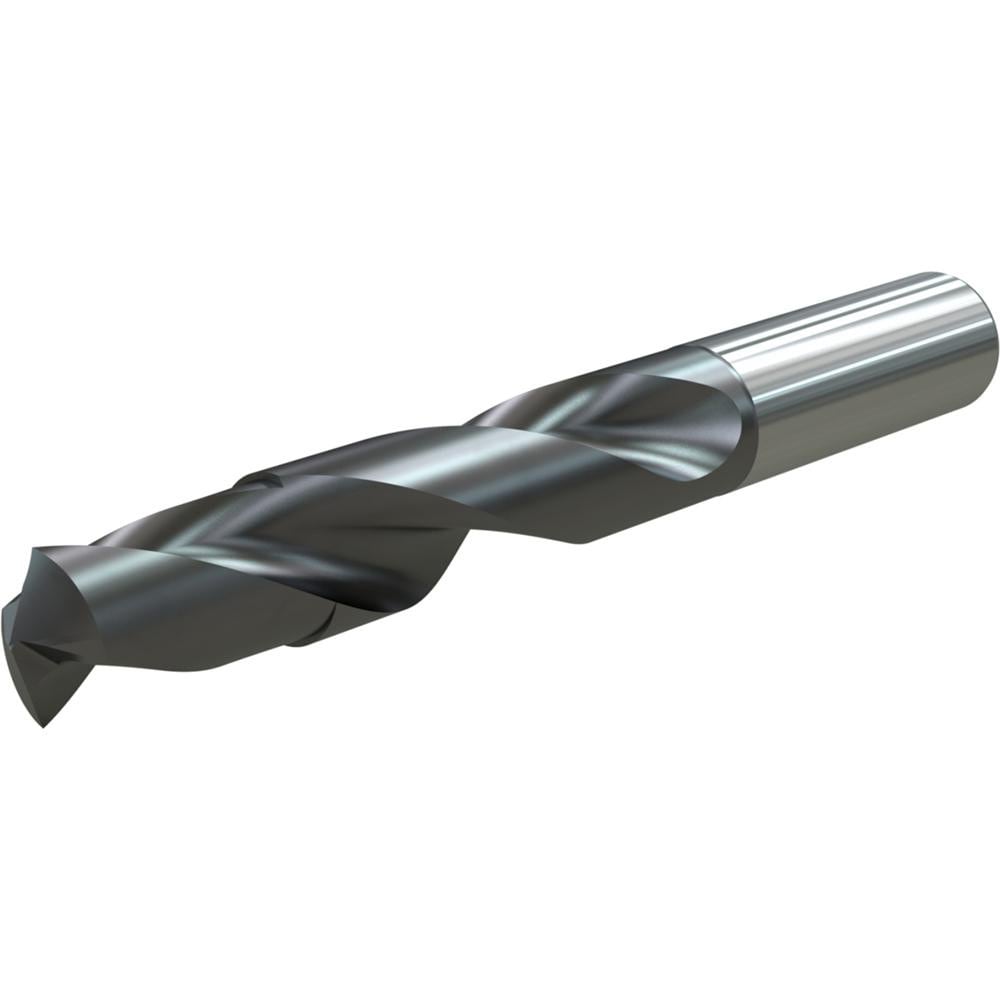

Brand: Widia / Part #: 4148315

Brand: Widia / Part #: 4148315


Item #: 08732786
Brand: Widia
Model #: 4148315

Product Specifications

Drill Bit Size (mm) 12.20
Drill Bit Material Solid Carbide
Cutting Direction Right Hand
Drill Bit Finish/Coating TiAlN
Drill Point Angle (Degrees) 140
Spiral Type Regular
Flute Type Spiral
Point Type Standard
Coolant Through No
Shank Type Cylindrical
Number of Flutes 2
Overall Length (mm) 124.0000
Flute Length (mm) 77.00
Series VDS202
Tool Application Drilling
Flute Length x Diamter Ratio 4
Flute By Diameter Ratio 4xD
Shank Diameter (mm) 14.0000
Maximum Drilling Depth (mm) 60.00
Shank Length (mm) 45.000
Number of Flats 2
Drill Point Length (mm) 2.10
Drill Bit Diameter Tolerance -0.018000 to 0.000000 mm
Tool Performance General Purpose
Double Margin No
Drill Bit Grade WU25PD
Material Grade WU25PD
$137.59
