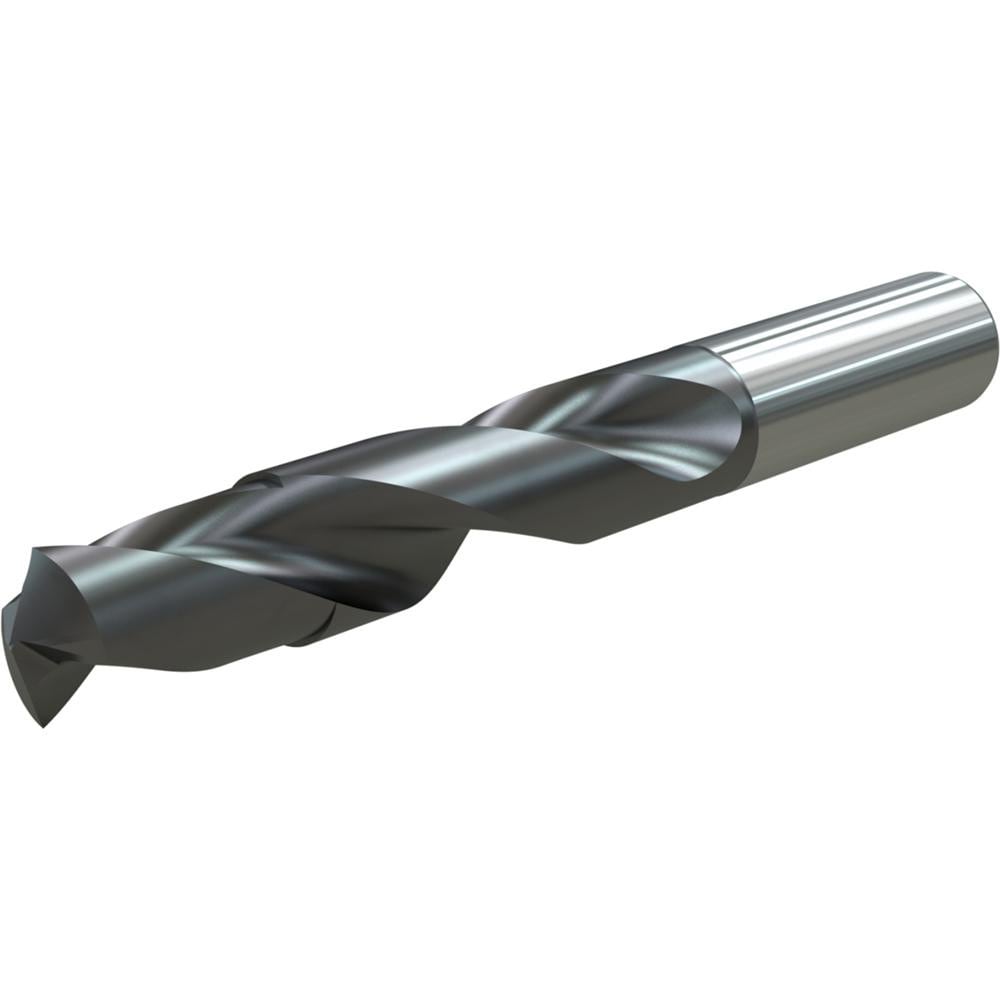

Brand: Widia / Part #: 4148317

Brand: Widia / Part #: 4148317


Item #: 08730152
Brand: Widia
Model #: 4148317

Product Specifications

Drill Bit Size (Decimal Inch) 0.4844
Drill Bit Size (Inch) 31/64
Drill Bit Material Solid Carbide
Cutting Direction Right Hand
Drill Bit Finish/Coating TiAlN
Drill Point Angle (Degrees) 140
Spiral Type Regular
Flute Type Spiral
Point Type Standard
Coolant Through No
Shank Type Cylindrical
Number of Flutes 2
Shank Diameter (Decimal Inch) 0.5512
Overall Length (Decimal Inch) 4.8800
Flute Length (Decimal Inch) 3.0300
Series VDS202
Tool Application Drilling
Flute Length x Diamter Ratio 4
Flute By Diameter Ratio 4xD
Maximum Drilling Depth (Decimal Inch) 2.3600
Shank Length (Decimal Inch) 1.7700
Number of Flats 2
Drill Point Length (Decimal Inch) 0.0830
Drill Bit Diameter Tolerance -0.000700 to 0.000000 in
Tool Performance General Purpose
Double Margin No
Drill Bit Grade WU25PD
Material Grade WU25PD
$137.59
