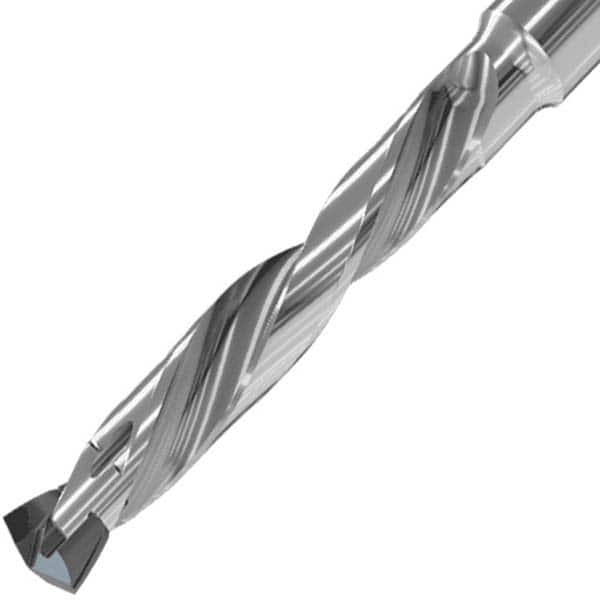

Iscar - Replaceable-Tip Drills Series: SumoCham Minimum Drill Diameter (mm): 5.50
Item #: 47481643
Brand: Iscar
Model #: 3346490
Product Specifications
Replaceable-Tip Drills; Series: SumoCham ; Minimum Drill Diameter (mm): 5.50 ; Minimum Drill Diameter (Decimal Inch): 0.2165 ; Maximum Drill Diameter (mm): 5.90 ; Maximum Drill Diameter (Decimal Inch): 0.2323 ; Drill Depth by Diameter Ratio: 5xD
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 5.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.2165 |
| Maximum Drill Diameter (mm) | 5.90 |
| Maximum Drill Diameter (Decimal Inch) | 0.2323 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 0.9803 |
| Maximum Drill Depth (mm) | 24.90 |
| Shank Diameter (mm) | 6.0000 |
| Insert Style | ICP |
| Insert Seat Size | 5.5 |
| Toolholder Style | DCN |
| Through Coolant | Yes |
| Shank Type | Cylindrical |
| Tip Length (mm) | 0.81 |
| Tip Length (Decimal Inch) | 0.0319 |
| Body Length (mm) | 39.150 |
| Body Length (Decimal Inch) | 1.5413 |
| Overall Length (mm) | 74.1500 |
| Overall Length (Decimal Inch) | 2.91930 |
| Toolholder Material | Steel (Shank) |
| Shank Length (mm) | 35.000 |
| Shank Length (Decimal Inch) | 1.3780 |
| Shank Type | Cylindrical |
| Overall Length (mm) | 74.1500 |
| Number of Flutes | 2 |
| Cutting Direction | Right Hand |
