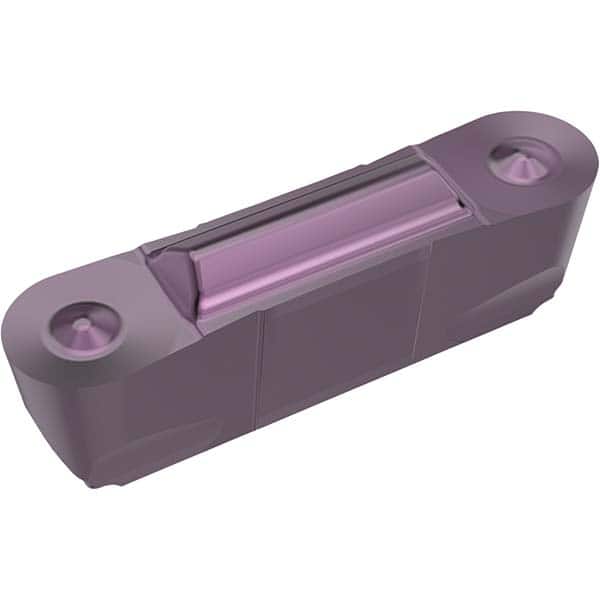

Seco - Grooving Inserts Insert Style: LCGF Insert Size: 1303
Item #: 18141762
Brand: Seco
Model #: 03284984
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Product Specifications
Grooving Inserts; Insert Style: LCGF ; Insert Size: 1303 ; Material: Carbide ; Cutting Width (mm): 3.000 ; Maximum Depth of Cut (mm): 11.00 ; Manufacturer's Grade: TGS2050
| Insert Style | LCGF |
| Insert Size | 1303 |
| Material | Carbide |
| Cutting Width (mm) | 3.000 |
| Maximum Depth of Cut (mm) | 11.00 |
| Manufacturer's Grade | TGS2050 |
| Coating | TiAlN/TiSiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.00 |
| Lead Angle | 90.000 |
| Relief Angle | 7 |
| Insert Seat Size | 13 |
| Chipbreaker | RP |
| Multi-Use Application | Grooving; Profiling |
| Multi-Use Tool | Yes |
| Corner Radius (mm) | 1.50 |
| Coating Process | PVD |
| Overall Length (mm) | 12.3500 |
| Series | LCGF |
| Rake | Positive |
| Overall Width (mm) | 3.0000 |
| Series Number | LCGF |
| Material | Carbide |
| Cutting Direction | Neutral |
| Insert Seat Size | 13 |
| Overall Length (mm) | 12.3500 |
| Maximum Depth of Cut (mm) | 11.00 |
| Insert Style | LCGF |
| Series | LCGF |
| Series | LCGF |
| Maximum Depth of Cut (mm) | 11.00 |
| Rake | Positive |
| Material | Carbide |
| Manufacturer's Grade | TGS2050 |
| Insert Style | LCGF |
| Insert Size | 1303 |
| Cutting Direction | Neutral |
| Coating Process | PVD |
| Coating | TiAlN/TiSiN |
| Multi Use Application | Grooving; Profiling |
| MultiUseTool | Yes |
