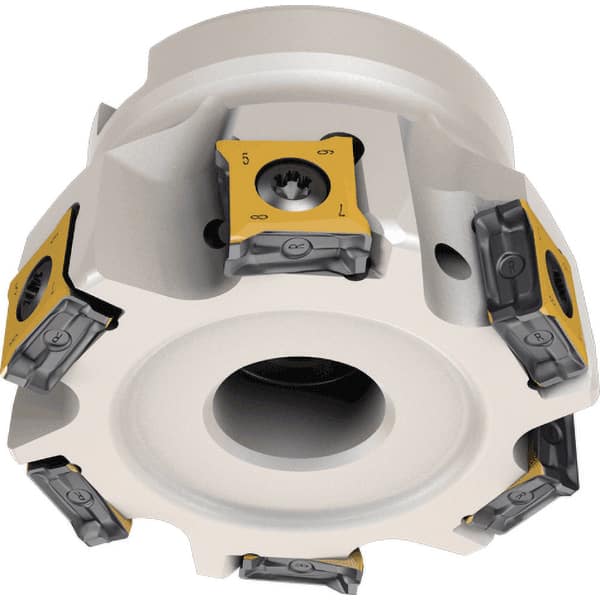

Iscar - Indexable Square-Shoulder Face Mills Cutting Diameter (mm): 40.00 Cutting Diameter (Decimal Inch): 1.5740
Item #: 15110075
Brand: Iscar
Model #: 3315285
Product Specifications
Indexable Square-Shoulder Face Mills; Cutting Diameter (mm): 40.00 ; Cutting Diameter (Decimal Inch): 1.5740 ; Arbor Hole Diameter (mm): 16.00 ; Arbor Hole Diameter (Decimal Inch): 0.6290 ; Lead Angle: 90 ; Overall Height (mm): 40.00000
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5740 |
| Arbor Hole Diameter (mm) | 16.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.6290 |
| Lead Angle | 90 |
| Overall Height (mm) | 40.00000 |
| Overall Height (Decimal Inch) | 1.5740 |
| Insert Compatibility | T890 LN.T |
| Series | T890HT |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 9.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.3740 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Number of Flutes | 5 |
| Hub Diameter (mm) | 38.000 |
| Hub Diameter (Decimal Inch) | 1.4960 |
