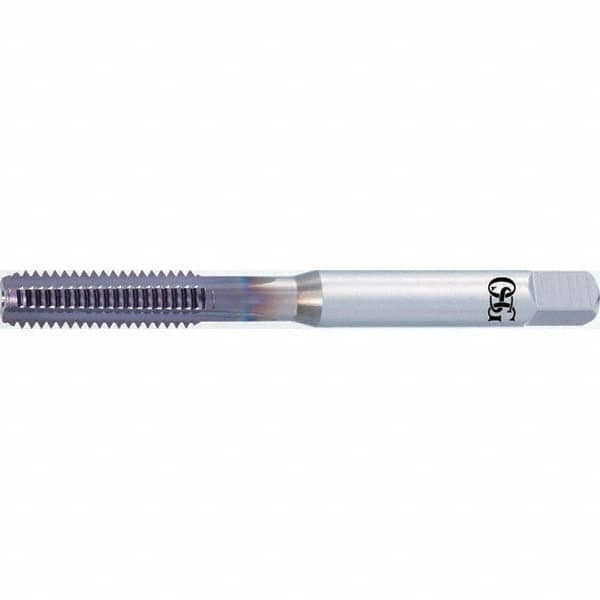

OSG - Straight Flute Taps Tap Type: Machine Tap Thread Size (Inch): 1/2-12
Item #: 94909082
Brand: OSG
Model #: 1661501200
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Product Specifications
Straight Flute Taps; Tap Type: Machine Tap ; Thread Size (Inch): 1/2-12 ; Class of Fit: NORMAL ; Thread Limit: H5 ; Number of Flutes: 4 ; Chamfer: Bottoming
| Tap Type | Machine Tap |
| Thread Size (Inch) | 1/2-12 |
| Class of Fit | NORMAL |
| Thread Limit | H5 |
| Number of Flutes | 4 |
| Chamfer | Bottoming |
| Material | Solid Carbide |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Through Coolant | Through Coolant |
| Through Coolant | Through Coolant |
| Thread Standard | UNC |
| Overall Length (Decimal Inch) | 4.33000 |
| Oversize | No |
| Series/List | 16615 |
| Thread Length (Decimal Inch) | 0.9210 |
| Shank Diameter (Decimal Inch) | 0.3670 |
| Square Size (Decimal Inch) | 0.2750 |
