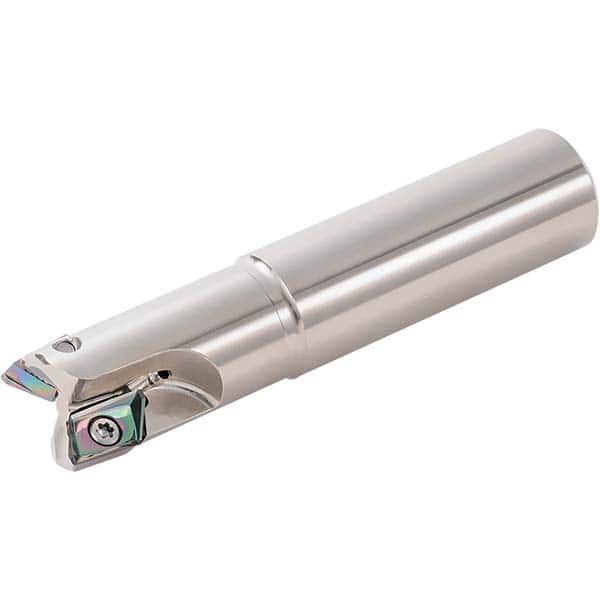

Kyocera - Indexable Square-Shoulder End Mills Cutting Diameter (mm): 31.75 Cutting Diameter (Decimal Inch): 1.2500
Item #: 16390593
Brand: Kyocera
Model #: 8865186
Product Specifications
Indexable Square-Shoulder End Mills; Cutting Diameter (mm): 31.75 ; Cutting Diameter (Decimal Inch): 1.2500 ; Cutting Diameter (Inch): 1.2500 ; Shank Type: Cylindrical ; Shank Diameter (mm): 31.7500 ; Shank Diameter (Inch): 1.2500
| Cutting Diameter (mm) | 31.75 |
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Cutting Diameter (Inch) | 1.2500 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 31.7500 |
| Shank Diameter (Inch) | 1.2500 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (mm) | 152.40 |
| Overall Length/Projection (Inch) | 6.0000 |
| Overall Length/Projection (Decimal Inch) | 6.0000 |
| Lead Angle | 90 |
| Series | MEAS |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | MEAS |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (mm) | 31.75 |
| Minimum Cutting Diameter (Decimal Inch) | 1.2500 |
| Head Length (mm) | 69.85 |
| Head Length (Decimal Inch) | 2.7500 |
| Weldon Flat | No |
| Insert Compatibility | KCGT FR-AL |
| Maximum RPM | 49000.000 |
| Toolholder Material | Steel |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Shank Diameter (Inch) | 1.2500 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Series | MEAS |
| Lead Angle | 90 |
| Insert Compatibility | KCGT FR-AL |
| Insert Holding Method | Screw |
| Hand of Holder | Right Hand |
