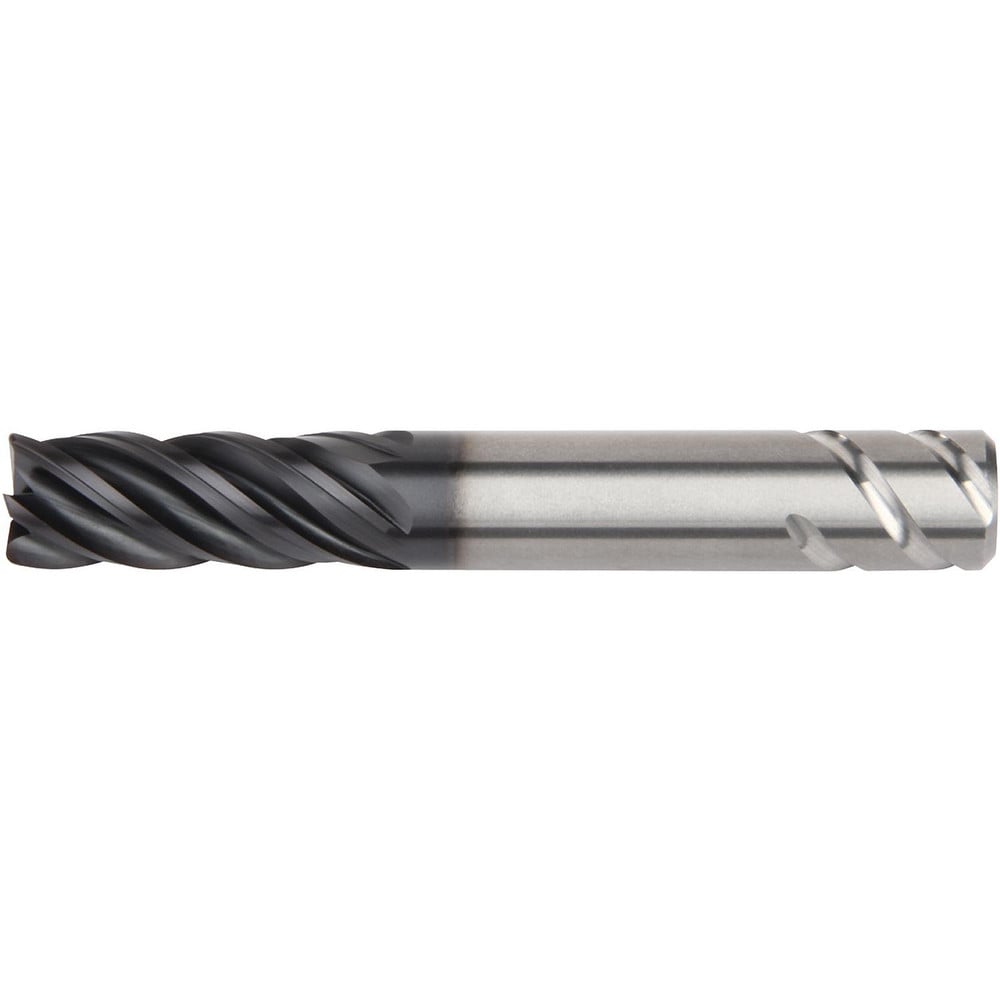

Brand: Widia / Part #: 6146540
Item #: 12689394
Brand: Widia
Model #: 6146540
Product Specifications
| Mill Diameter (Inch) | 3/8 |
| Coating/Finish | AlTiN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 5 |
| Overall Length (Inch) | 2 |
| Length of Cut (Inch) | 1/2 |
| Cutting Direction | Right Hand |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Flute Direction | Right Hand |
| Overall Length (Decimal Inch) | 2.0000 |
| Chipbreaker | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5000 |
| Length Type | Regular |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Material Removal Type | Finishing |
| Minimum Helix Angle | 38.00 |
| Maximum Helix Angle | 38.00 |
| Primary Workpiece Material | Hard Material; High Temperature Alloy; Steel |
| Primary Workpiece Material Code | P; S; H |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Material Grade | WS15PE |
| Series | 5V0E |
