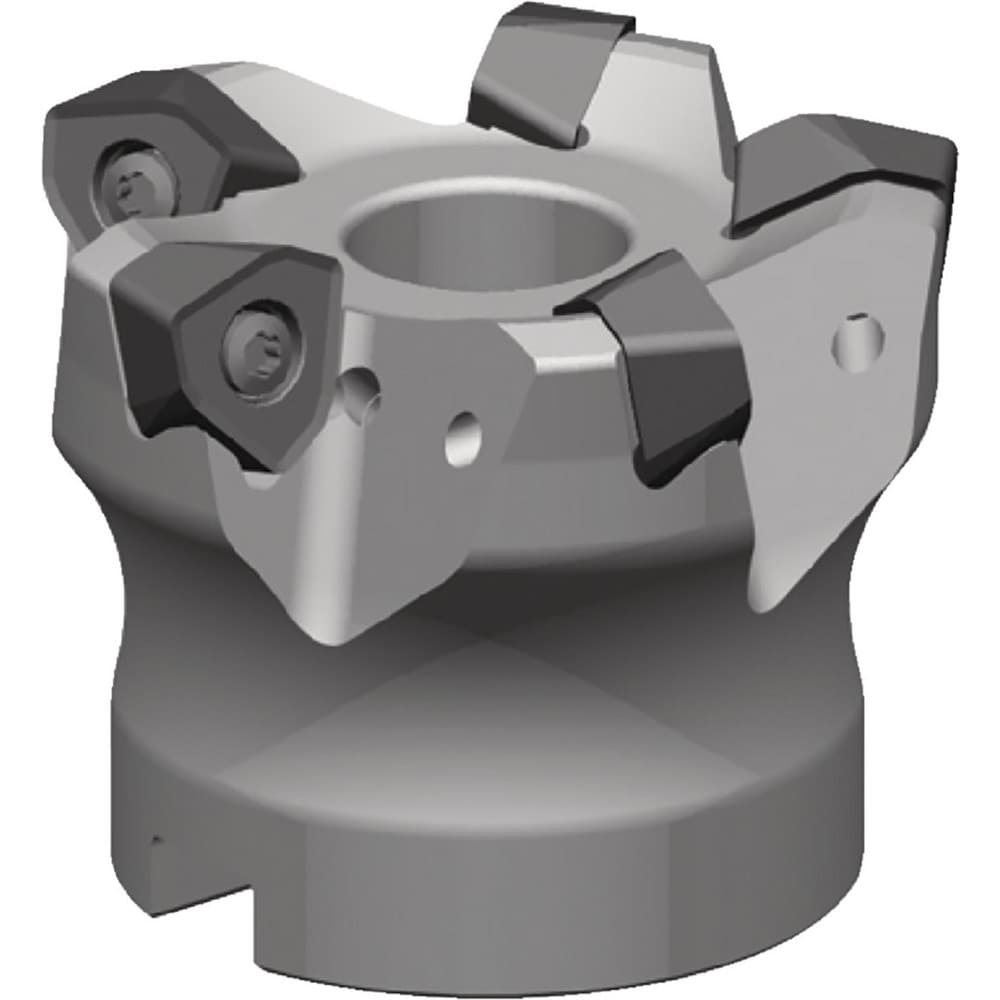

Brand: Widia / Part #: 5338917
Item #: 40049371
Brand: Widia
Model #: 5338917
Product Specifications
| Minimum Cutting Diameter (mm) | 49.08 |
| Maximum Cutting Diameter (mm) | 66.00 |
| Maximum Depth of Cut (mm) | 2.00 |
| Arbor Hole Diameter (mm) | 27.00 |
| Compatible Insert Size Code | WOEJ120713_R__ |
| Maximum Ramping Angle | 2.4 |
| Cutter Style | M370 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | M370 |
| Maximum Body Diameter (mm) | 62.94 |
| Keyway Width (mm) | 12.46 |
| Overall Height (Mm - 5 Decimals) | 50.00000 |
| Maximum RPM | 17000.000 |
| Tool Application | Facing; Helical Interpolation; Plunging; Slotting; Shouldering; Ramping |
| Tool Performance | High Performance |
| Primary Workpiece Material | Universal |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
| Coolant Through | Yes |
