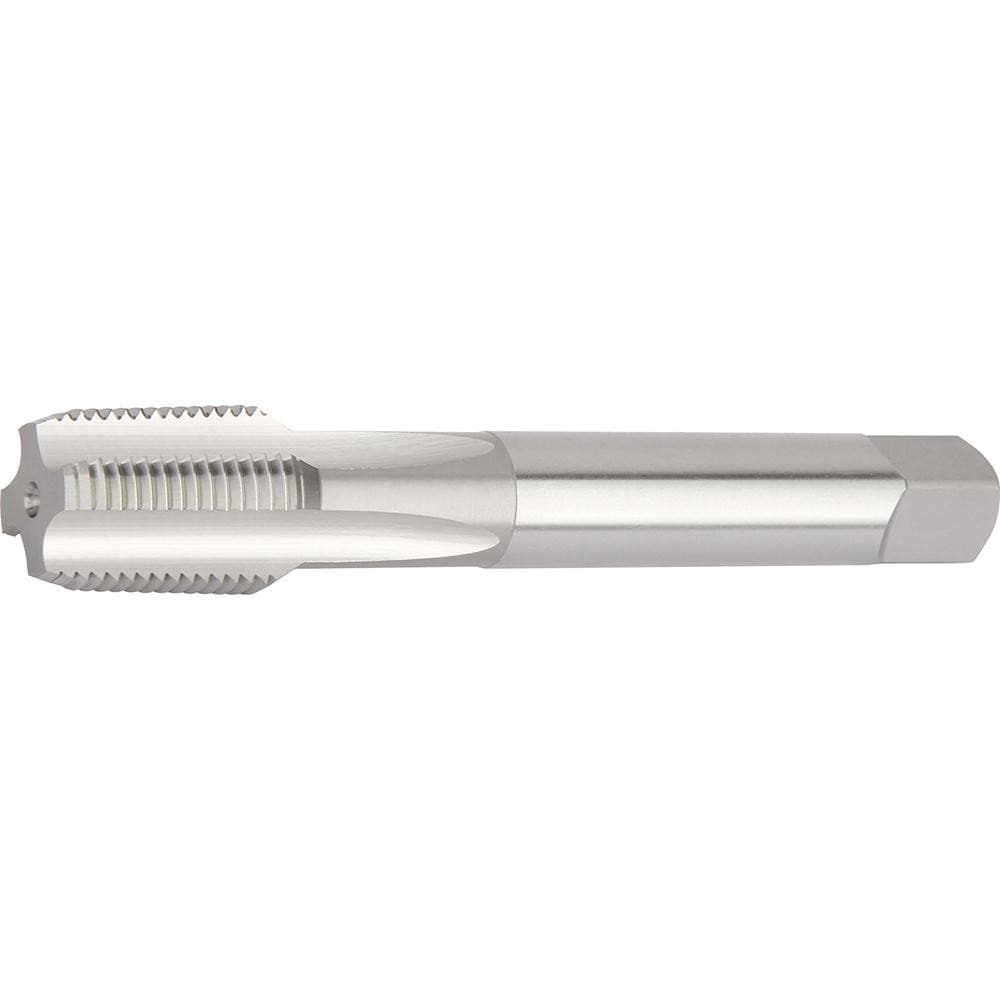

Brand: Widia / Part #: 6058954
Item #: 83082149
Brand: Widia
Model #: 6058954
Product Specifications
| Thread Size (Inch) | 1/8-27 |
| Overall Length (Decimal Inch) | 3.5400 |
| Chamfer | Semi-Bottoming |
| Thread Standard | NPT |
| Thread Pitch (Decimal Inch) | 0.0370 |
| Flute Direction | Right Hand |
| Helix Angle | 0 |
| Material | High Speed Steel |
| Thread Length (Decimal Inch) | 0.5100 |
| Thread Depth (Decimal Inch) | 1.4300 |
| Shank Diameter (Decimal Inch) | 0.2760 |
| Square Length (Decimal Inch) | 0.3100 |
| Square Size (Decimal Inch) | 0.2000 |
| Projection (Decimal Inch) | 1.4300 |
| Application | Tapping |
| Material Application | Cast Iron; Steel |
| Series | VTSTR |
| Threads per Inch | 27.0 |
| Coating/Finish | Uncoated |
| Number Of Flutes | 4 |
