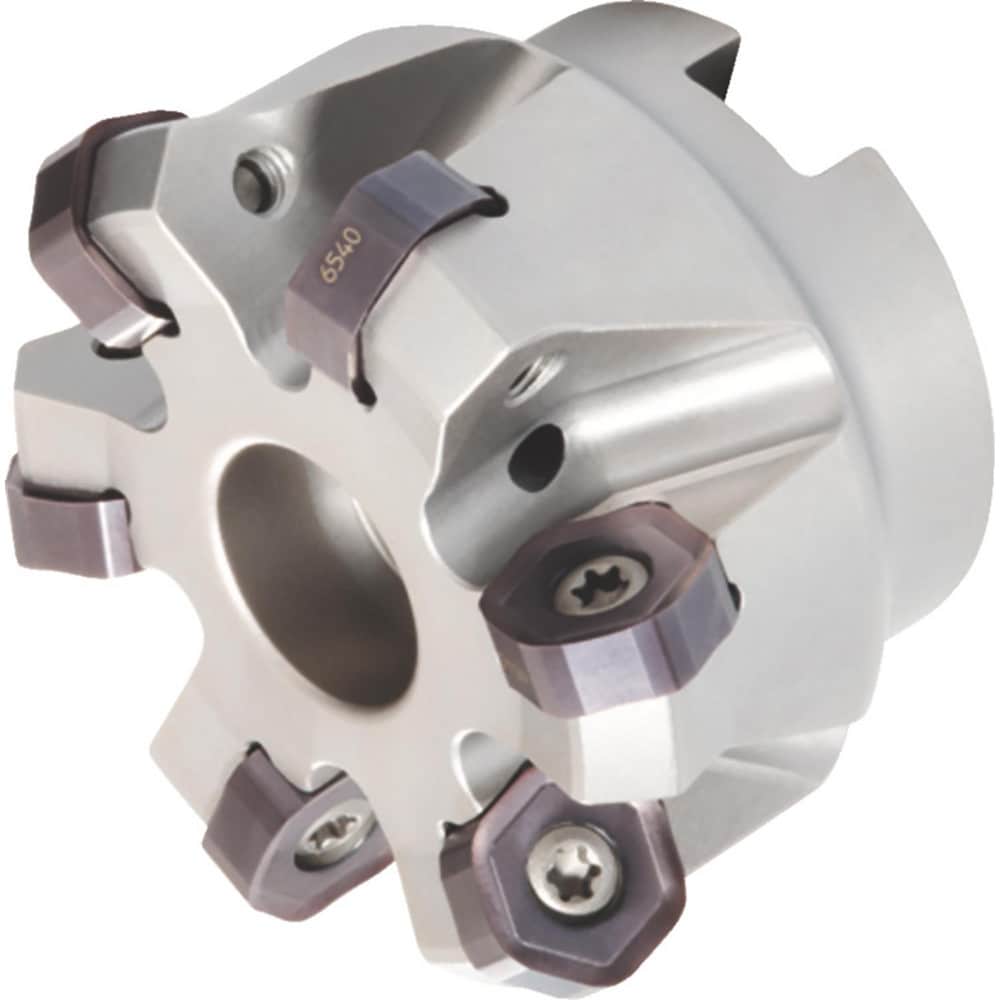

Brand: Widia / Part #: 3954506

Brand: Widia / Part #: 3954506


Item #: 97568950
Brand: Widia
Model #: 3954506

Product Specifications

Minimum Cutting Diameter (Decimal Inch) 4.0000
Minimum Cutting Diameter (Inch) 4
Maximum Cutting Diameter (Decimal Inch) 4.3424
Maximum Depth of Cut (Decimal Inch) 0.1378
Arbor Hole Diameter (Decimal Inch) 1.5000
Arbor Hole Diameter (Inch) 1-1/2
Lead Angle 45.000
Compatible Insert Size Code HN..0704
Cutter Style M1200 Mini
Cutting Direction Right Hand
Insert Holding Method Screw
Rake Negative
Series M1200 Mini
Hub Diameter (Decimal Inch) 3.6610
Overall Height (Inch) 1-3/4
Overall Height (Decimal Inch) 1.7500
Maximum Body Diameter (Decimal Inch) 4.2330
Maximum RPM 6300.000
Tool Application Chamfering; Facing; Milling
Tool Performance General Purpose
Primary Workpiece Material Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; H; K; M; N
Complete Insert Compatibility HNGJ0704ANENLD
Toolholder Material Steel
Number Of Cutter Inserts 12
Coolant Through Yes
Number Of Flutes 12
$984.04
