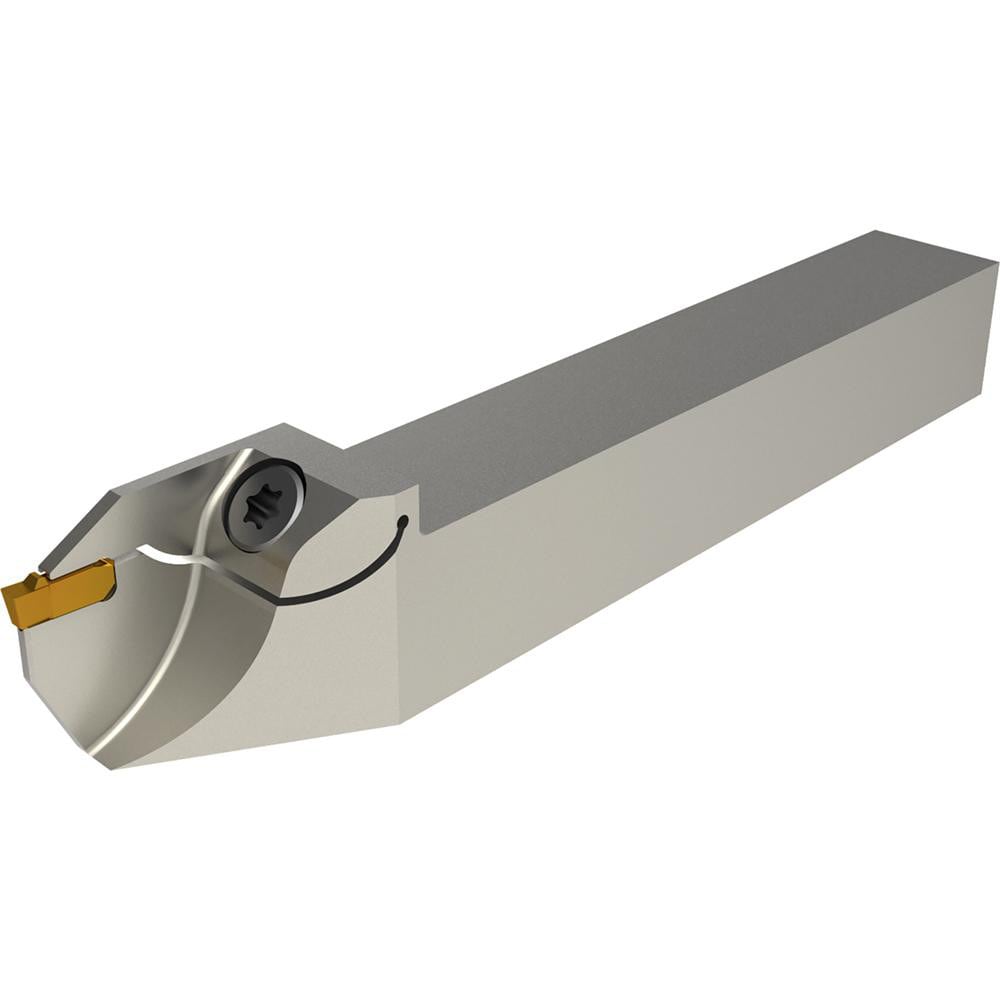

Brand: Widia / Part #: 6765327

Brand: Widia / Part #: 6765327


Item #: 98267164
Brand: Widia
Model #: 6765327

Product Specifications

Internal or External External
Maximum Depth of Cut (Decimal Inch) 0.6300
Hand of Holder Left Hand
Maximum Groove Width (Decimal Inch) 0.0790
Minimum Groove Width (Decimal Inch) 0.0787
Toolholder Style WGCSC
Tool Material Steel
Insert Holding Method Clamp
Compatible Insert Size Code 0200
Insert Compatibility WG0200M02P02
Shank Height (Inch) 5/8
Shank Height (Decimal Inch) 0.6250
Shank Length (Decimal Inch) 3.4570
Shank Width/Diameter (Decimal Inch) 0.6250
Shank Width/Diameter (Inch) 5/8
Series WGC
Overall Length (Decimal Inch) 4.5000
Cutting Tool Application Grooving; Facing; Cut-Off; Turning
Back of Bar to Cutting Edge (Decimal Inch) 0.6250
Head Height (mm) 20.800
Head Length (Decimal Inch) 1.0433
Primary Workpiece Material Universal
Insert Seat Size 2.0
Coolant Through No
$123.01
