![Brand: Widia / Part #: 6765980](http://indtoolandsupply.com/cdn/shop/files/9829792-21_1024x1024.jpg?v=1704165610)

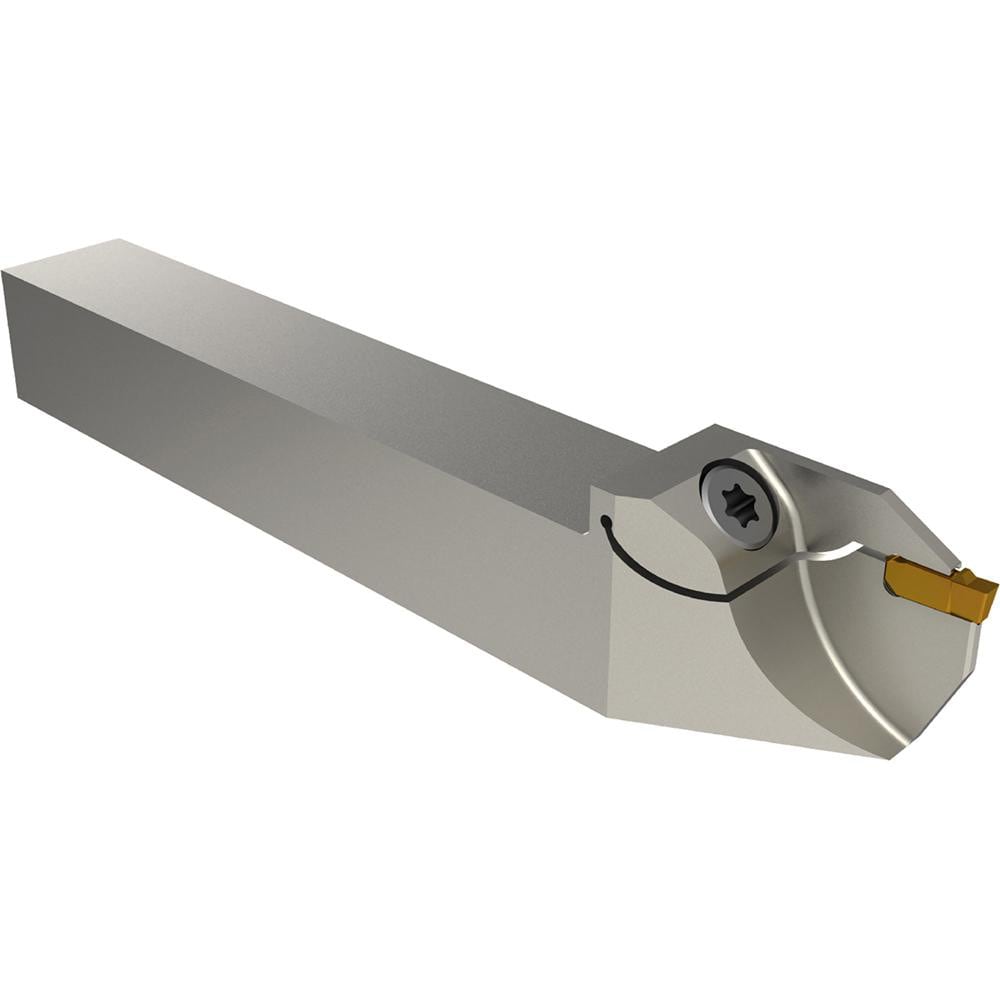

Brand: Widia / Part #: 6765980
Item #: 98297922
Brand: Widia
Model #: 6765980
Product Specifications
Internal or External | External |
Maximum Depth of Cut (mm) | 16.00 |
Hand of Holder | Right Hand |
Maximum Groove Width (mm) | 2.00 |
Minimum Groove Width (mm) | 2.00 |
Toolholder Style | WGCSC |
Tool Material | Steel |
Insert Holding Method | Clamp |
Compatible Insert Size Code | 0200 |
Insert Compatibility | WG0200M02P02 |
Shank Height (mm) | 16.00 |
Shank Length (mm) | 98.500 |
Shank Width/Diameter (mm) | 16.00 |
Series | WGCSCF |
Overall Length (mm) | 125.0000 |
Cutting Tool Application | Grooving; Facing; Cut-Off; Turning |
Back of Bar to Cutting Edge (Decimal Inch) | 0.6299 |
Head Height (mm) | 20.500 |
Head Length (mm) | 26.50 |
Primary Workpiece Material | Universal |
Insert Seat Size | 2.0 |
Coolant Through | No |
