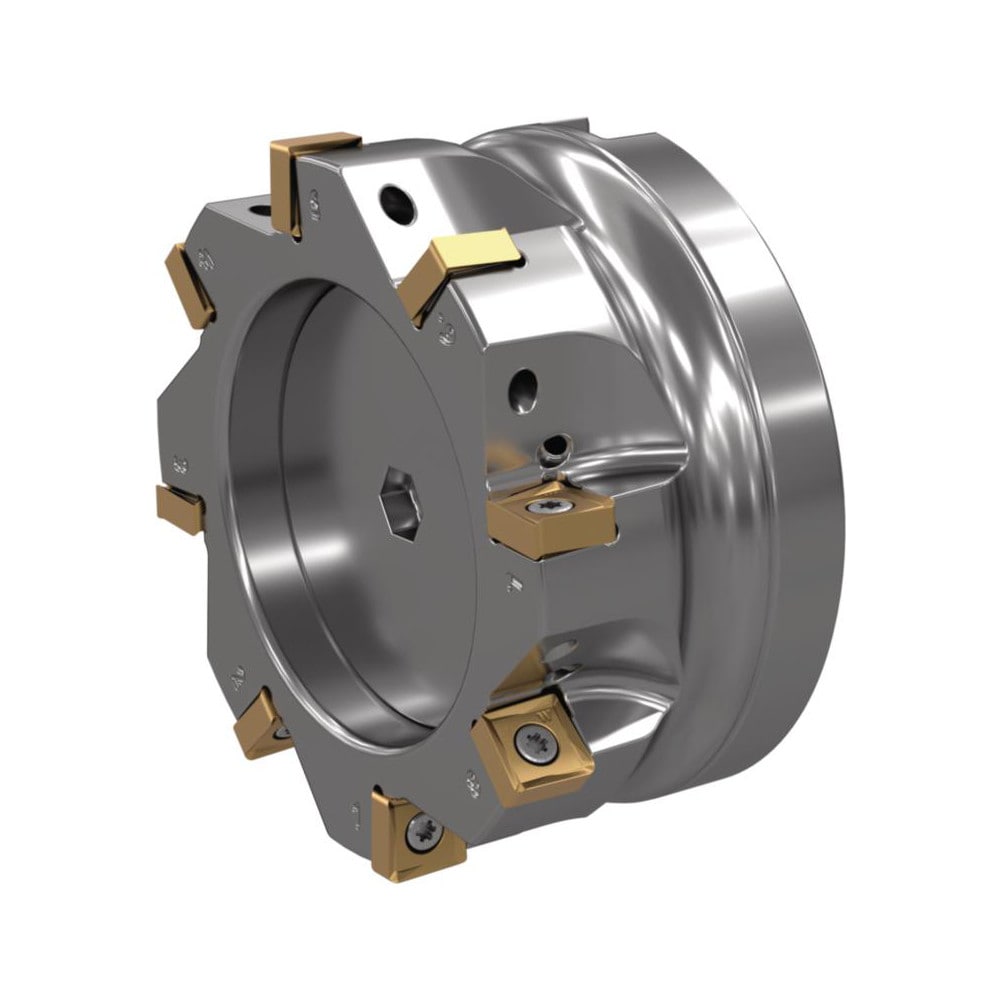

Brand: Widia / Part #: 6596156

Brand: Widia / Part #: 6596156


Item #: 09787235
Brand: Widia
Model #: 6596156

Product Specifications

Minimum Cutting Diameter (Decimal Inch) 6.0000
Maximum Cutting Diameter (Decimal Inch) 6.0000
Maximum Depth of Cut (Decimal Inch) 0.3872
Arbor Hole Diameter (Decimal Inch) 2.0000
Compatible Insert Size Code SNHX1204..
Maximum Ramping Angle 0
Cutter Style VSM
Cutting Direction Right Hand
Insert Holding Method Screw
Lead Angle 90
Rake Negative (Radial); Positive (Axial)
Rake Angle -13.000
Series VSM890
Maximum Body Diameter (Decimal Inch) 5.8332
Overall Height (Decimal Inch) 2.3800
Keyway Width (mm) 19.30
Hub Diameter (Decimal Inch) 4.8750
Maximum RPM 12500.000
Tool Application Milling; Slotting
Tool Performance General Purpose
Primary Workpiece Material Universal
Number of Adjustable Pockets 0
ISO Number VSM890D600Z08S200SN12
Coolant Hole Diameter (Decimal Inch) 0.1181
Complete Insert Compatibility SNHX120408PNERMM
Toolholder Material Steel
Manufacturers Catalog Number VSM890D600Z08S200SN12
Coolant Through Yes
Number Of Cutter Inserts 8
Number Of Flutes 8
$1,098.79
