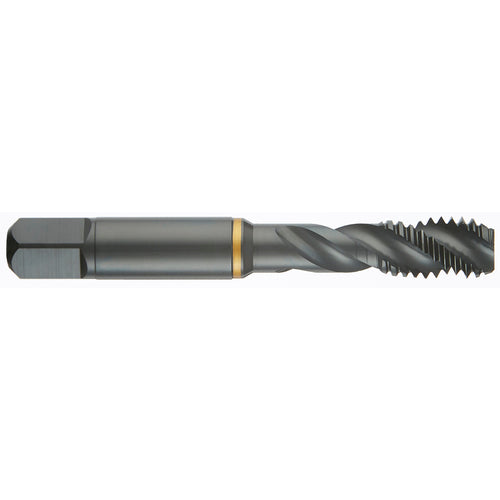

#12 - 24 UNC 3-Flute, H3 Semi-Bottoming Series/List # 4407 Spiral Flute Tap
Item #: GD1544073054860
Brand: Guhring
Model #: 9044073054860
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #12 |
| Thread Tolerance Class (TCTR) | H3 |
| Threads per Inch (TPI) | 24 |
| Chamfer | 2-3 Form C |
| Thread Standard | UNC |
| Coating | Steam Oxide |
| Overall Length (OAL) | 2.382″ |
| Flute Length | 0.4331″ |
| Thread Cutting Part Length (THL) | 0.433″ |
| Flute Type | Spiral |
| Usable Length (LU) | 1.024″ |
| Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.22″ |
| Coolant Supply Property (CSP) | without |
| Flute Count (NOF) | 3 |
| Measurement Type | Machine Screw |
| Flute Helix Angle (FHA) | 40 Degrees |
| Series/List # | 4407 |
| Cutting Edge Material | HSS-E |
