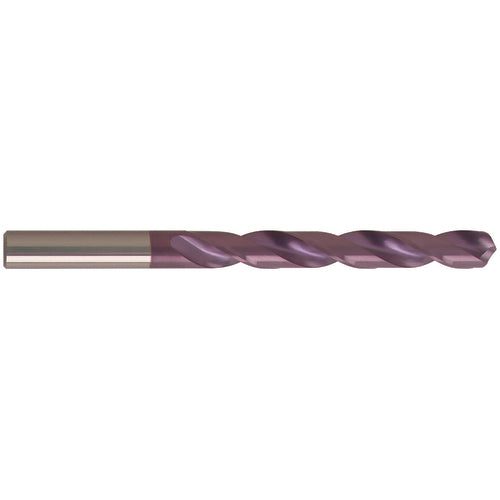

#39 Dia. × 2.53 mm Shank × 30 mm Flute Length × 57 mm OAL, Jobber, 118°, nano-FIREX, 2 Flute, External Coolant, Round Solid Carbide Drill

#39 Dia. × 2.53 mm Shank × 30 mm Flute Length × 57 mm OAL, Jobber, 118°, nano-FIREX, 2 Flute, External Coolant, Round Solid Carbide Drill


Item #: GD1124640025300
Brand: Guhring
Model #: 9024640025300

Product Specifications
Drill Bit Size / Cutting Diameter (DC) #39
Cutting Edge Material Carbide
Decimal Equivalent 0.0995″
Tool Type Carbide Drill
Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge #39
Measurement Type Wire Gauge
Length Group Jobber
Series/List # 2464
Coating nano-FIREX
Usable Length (LU) 26.21 mm
Connection Diameter Machine Side (DCONMS) 2.53 mm
Length Chip Flute (LCF) 30 mm
Coolant Supply Property (CSP) External
Overall Length (OAL) 57 mm
Point Angle (SIG) 118 Degrees
Flute Count (NOF) 2
Flute Helix Angle (FHA) 30 Degrees
Cutting Direction (HAND) Right Hand
Shape Jobber Drill
Body Material Carbide
$17.12
