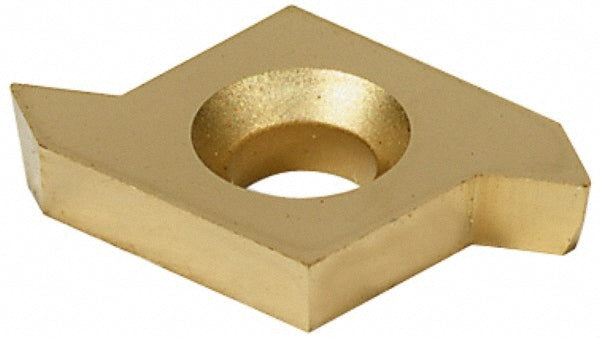

Brand: Widia / Part #: 2830567
Item #: 70731377
Brand: Widia
Model #: 2830567
Product Specifications
| Insert Style | CDT |
| Insert Material | Carbide |
| Manufacturer Grade | CG5 |
| Thread Type | Internal |
| Material Grade | Submicron |
| Thread Standard | Metric |
| Insert Hand | Right Hand |
| Internal Pitch | 0.5-1.0 |
| Included Angle | 60.00 |
| Chipbreaker | No |
| Series | CDT |
| Coating Process | PVD |
| Inscribed Circle (Decimal Inch) | 0.1560 |
| Tip to Top of Insert (Decimal Inch) | 0.0500 |
| Ansi Code | CDT50022R |
| Iso Code | CDT50022R |
| Maximum Corner Radius (Decimal Inch) | 0.0020 |
| Width of Cutting Tip (Decimal Inch) | 0.1562 |
| Maximum Depth of Cut (Decimal Inch) | 0.3000 |
| Coating Classification | PVD |
| Shape | Diamond |
| Insert Holding Method | Screw |
| Insert Size | 5-002-2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.0500 |
| Finish Coating | PVD |
| Coolant Through | No |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.1100 |
