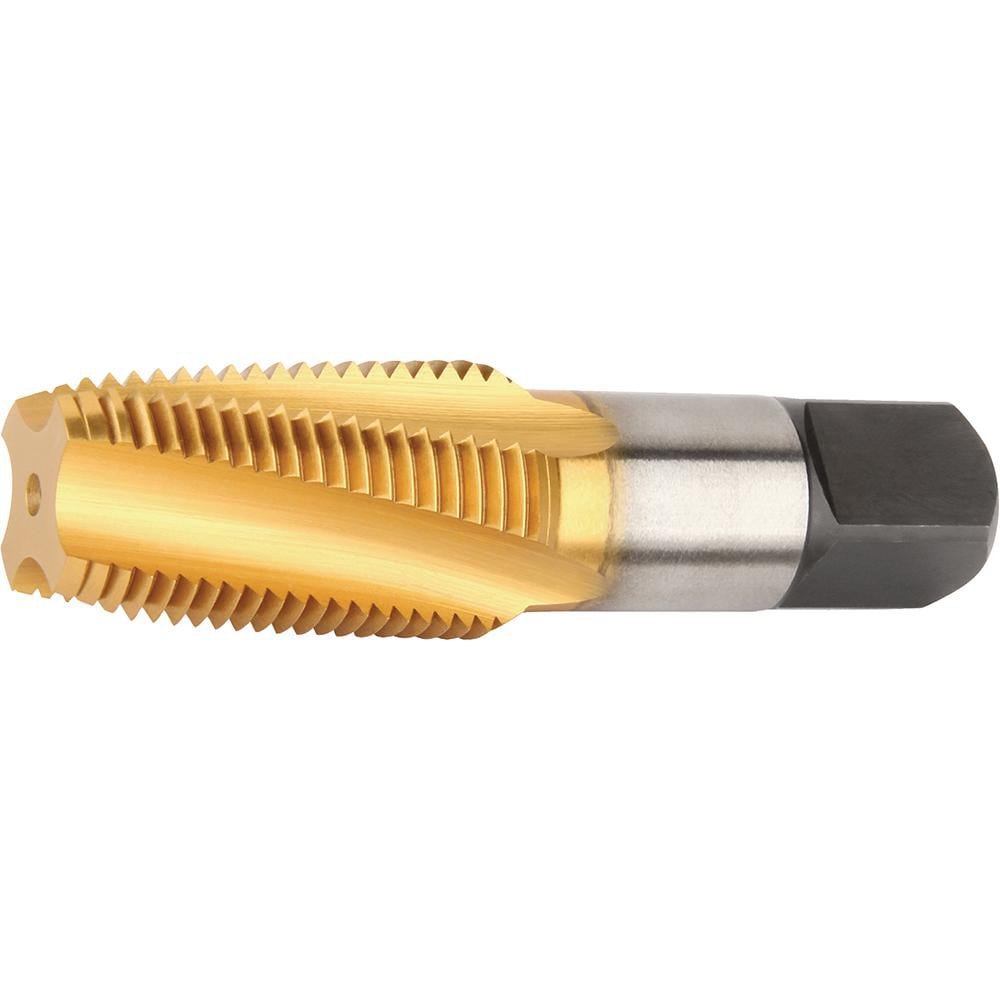

Brand: Widia / Part #: 5629890
Item #: 83170407
Brand: Widia
Model #: 5629890
Product Specifications
| Thread Size (Inch) | 1-11-1/2 |
| Overall Length (Decimal Inch) | 3.7500 |
| Overall Length (Inch) | 3-3/4 |
| Chamfer | Semi-Bottoming |
| Thread Standard | NPTF |
| Thread Pitch (Decimal Inch) | 0.0833 |
| Flute Direction | Right Hand |
| Helix Angle | 15 |
| Material | High Speed Steel |
| Thread Length (Decimal Inch) | 1.7500 |
| Thread Length (Inch) | 1-3/4 |
| Thread Depth (Decimal Inch) | 1.7500 |
| Shank Diameter (Decimal Inch) | 1.1250 |
| Square Length (Decimal Inch) | 0.8130 |
| Square Size (Decimal Inch) | 0.8000 |
| Application | Tapping |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | VTSFT |
| Threads per Inch | 12.0 |
| Coating/Finish | TiN |
| Number Of Flutes | 4 |
