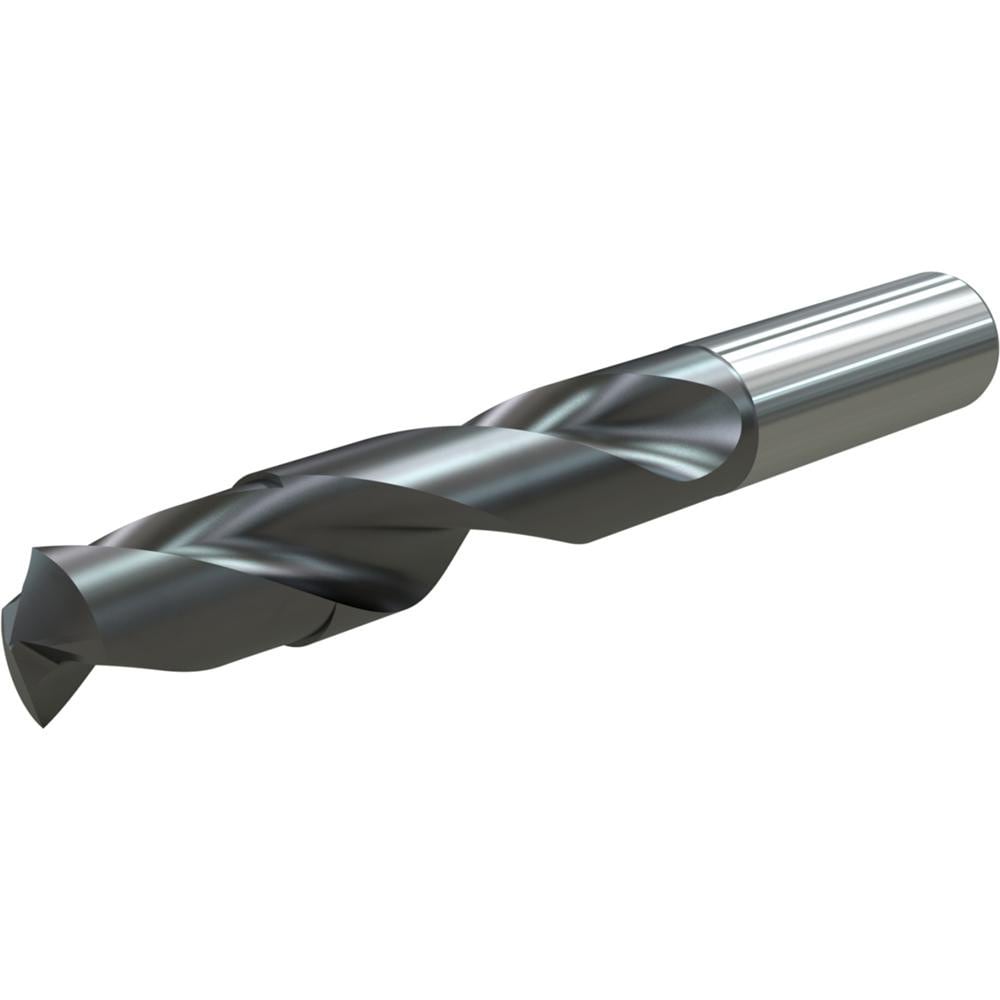

Brand: Widia / Part #: 4142983
Item #: 11782356
Brand: Widia
Model #: 4142983
Product Specifications
Drill Bit Size (Decimal Inch) | 0.5469 |
Drill Bit Size (Inch) | 35/64 |
Drill Bit Material | Solid Carbide |
Cutting Direction | Right Hand |
Drill Bit Finish/Coating | TiAlN |
Drill Point Angle (Degrees) | 140 |
Spiral Type | Regular |
Flute Type | Spiral |
Point Type | Standard |
Coolant Through | Yes |
Shank Type | Cylindrical |
Number of Flutes | 2 |
Shank Diameter (Decimal Inch) | 0.5512 |
Overall Length (Decimal Inch) | 4.8819 |
Flute Length (Decimal Inch) | 3.0315 |
Series | VDS402 |
Tool Application | Drilling |
Flute Length x Diamter Ratio | 4 |
Flute By Diameter Ratio | 4xD |
Maximum Drilling Depth (Decimal Inch) | 2.3622 |
Shank Length (Decimal Inch) | 1.7717 |
Number of Flats | 2 |
Drill Point Length (Decimal Inch) | 0.0941 |
Drill Bit Diameter Tolerance | -0.000700 to 0.000000 in |
Tool Performance | General Purpose |
Double Margin | No |
Drill Bit Grade | WU25PD |
Material Grade | WU25PD |
