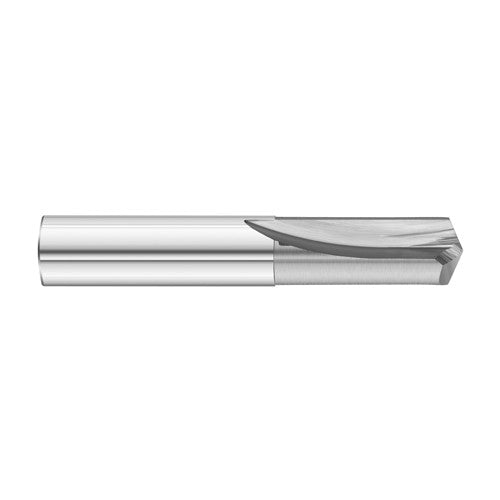

1/8″ Dia. × 1/8″ Shank × 5/8″ Flute Length × 2″ OAL, 5xD, 135°, Uncoated, 2xD Flute, External Coolant, Round Solid Carbide Drill
Item #: FT8217514
Brand: Fullerton Tool
Model #: 17514
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 1/8″ |
| Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/8″ |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.125″ |
| Tool Type | Drill |
| Length Group | 5xD |
| Point Shape | Notch |
| Coating | Uncoated |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Series/List # | 1570 |
| Coolant Supply Property (CSP) | External |
| Length Chip Flute (LCF) | 5/8″ |
| Point Angle (SIG) | 135 Degrees |
| Overall Length (OAL) | 2″ |
| Flute Helix Angle (FHA) | Straight |
| Flute Count (NOF) | 2 |
