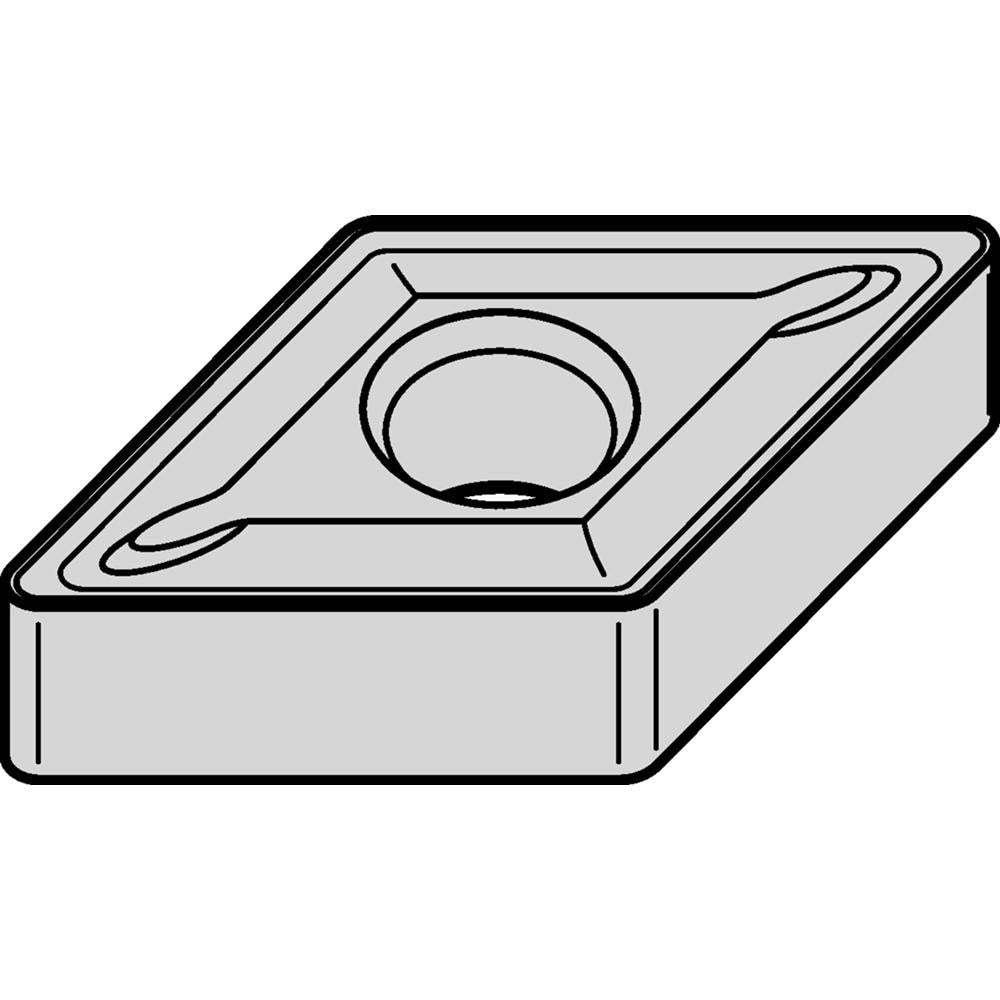

Brand: Widia / Part #: 4165992

Brand: Widia / Part #: 4165992


Item #: 94005709
Brand: Widia
Model #: 4165992

Product Specifications

Insert Style DNMG
Insert Shape Code D
Insert Size Code 432
Insert Shape Diamond
Coating/Finish TiCN; TiN; Al2O3
Manufacturer Grade TN20P
Corner Radius (Decimal Inch) 0.0315
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.2031
Maximum Depth of Cut (Decimal Inch) 0.3050
Inscribed Circle (Decimal Inch) 0.5000
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1875
Clearance Code N
Tolerance Code M
Included Angle 55.00
Relief Angle 0.000
Series DNMG
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.6100
Number Of Cutting Edges 4
Secondary Workpiece Material Cast Iron; Steel
Secondary Workpiece Material Code P; K
Ansi Code DNMG4326P
Iso Code DNMG1504086P
Manufacturers Catalog Number DNMG4326P
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker 6P
Style DNMG
Width (Decimal Inch - 4 Decimals) 0.5000
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
