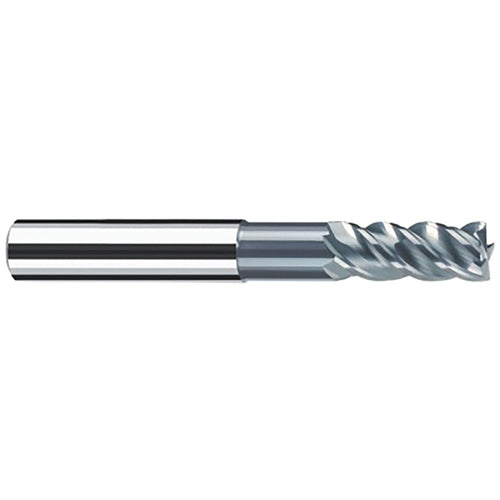

P5931605 NB-NVD 5/8″ 4 FL
Item #: FR10P5931605
Brand: Fraisa USA Inc
Model #: P5931605
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| Usable Length (LU) | 3-1/8″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium |
| Depth of Cut Maximum (APMX) | 1-9/16″ |
| Corner Chamfer Width (CHW) | 0.01″ |
| Overall Length (OAL) | 5″ |
| Neck Diameter (DN) | 0.575″ |
| Cutting Edge Material | Carbide |
| Tool Type | Square Endmill |
| Coating | Polychrom |
| Length Group | Standard with Extended Reach |
| Flute Count (NOF) | 4 |
| Decimal Equivalent | 0.625″ |
| Shank Type | Weldon |
| Measurement Type | Inch |
| End Shape | Square |
| Series/List # | NB-NVD |
