Brand: Widia / Part #: 2114832

Brand: Widia / Part #: 2114832


Item #: 99721185
Brand: Widia
Model #: 2114832

Product Specifications

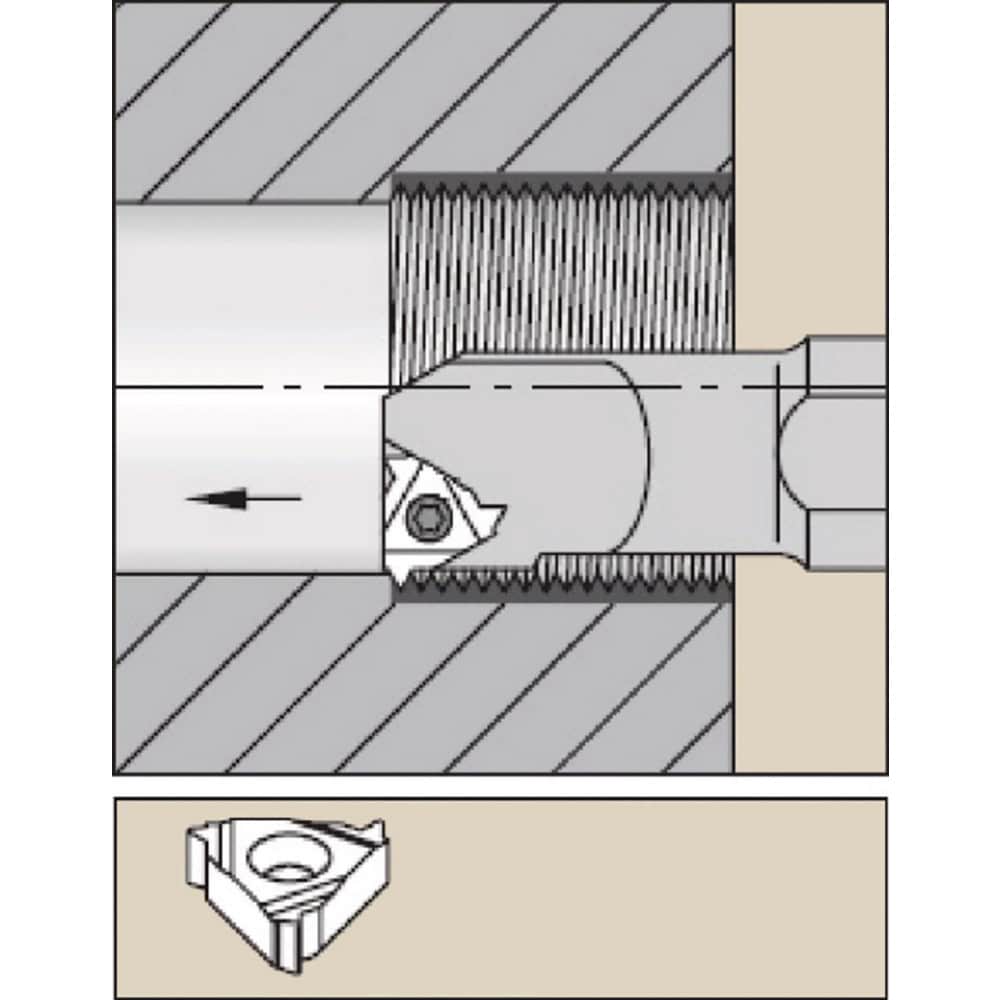

Thread Type Internal
Hand of Holder Left Hand
Compatible Insert Size Code 3
Shank Width/Diameter (mm) 32.00
Toolholder Style AVR
Insert Compatibility LT16NL
Coolant Entry Style Code 1-Axial Concentric Entry
Insert Holding Method Screw
Shank Height (mm) 30.82
Shank Length (mm) 190.000
Overall Length (mm) 250.0000
Minimum Bore Diameter (mm) 29.00
Series N/A-VR
Multi-use Tool No
Cutting Tool Application Threading
Head Length (mm) 60.00
Maximum Depth of Cut (mm) 1.80
Adjustable Overhang Yes
Maximum Overhang (Inch) 2.3622
Back of Bar to Cutting Edge (mm) 32.30
Center to Cutting Edge (mm) 16.30
Insert Inscribed Circle (Decimal Inch) 0.3750
Insert Inscribed Circle (Inch) 3/8
Insert Inscribed Circle (mm) 9.53
Primary Workpiece Material Code P; S; H; K; M; N; O
Coolant Hole Diameter (Decimal Inch) 0.3150
Toolholder Material Steel
Insert Thickness (Decimal Inch) 0.1350
Style AVR
Coolant Through Yes
$258.35
