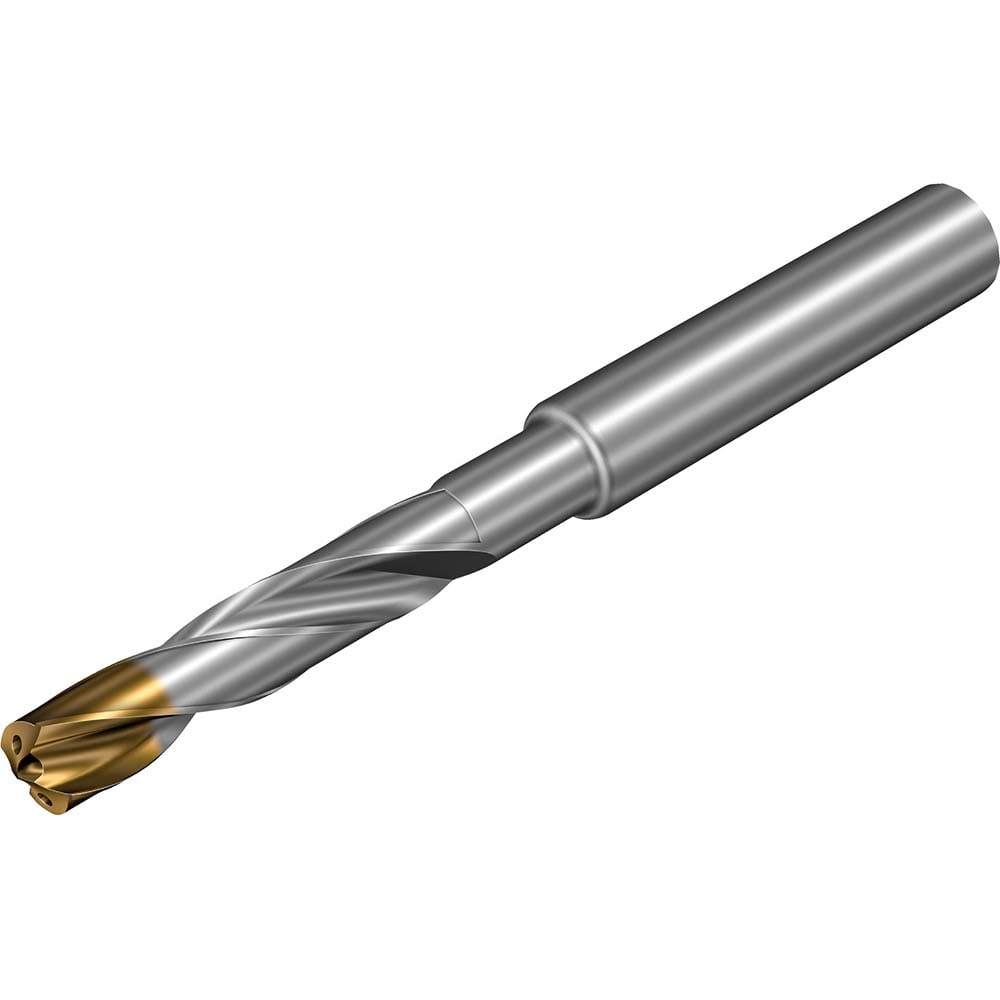

Brand: Sandvik Coromant / Part #: 8360153
Item #: 67621979
Brand: Sandvik Coromant
Model #: 8360153
Product Specifications
| Drill Bit Size (mm) | 17.00 |
| Overall Length (mm) | 246.0000 |
| Flute Length (mm) | 194.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | PVD |
| Drill Point Angle | 140 |
| Shank Type | Cylindrical Shank |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | CoroDrill? 860 |
| Point Type | Split-Point |
| Cutting Direction | Right Hand |
| Tool Application | Drilling |
| Number Of Flutes | 2 |
| Drill Bit Grade | X1BM |
| Drill Bit Size (Decimal Inch) | 0.6693 |
| Drill Point Length (mm) | 3.09 |
| Drill Point Length (Decimal Inch) | 0.1218 |
| Overall Length (Decimal Inch) | 9.6850 |
| Shank Diameter (Decimal Inch) | 0.7087 |
| Shank Diameter (mm) | 18.0000 |
| Flute Length (Decimal Inch) | 7.6378 |
| Flute By Diameter Ratio | 10xD |
| Maximum Drilling Depth (Decimal Inch) | 6.8504 |
| Maximum Drilling Depth (mm) | 174.00 |
| Specification Designation | DIN |
| Specification Number | DIN 6535HA |
