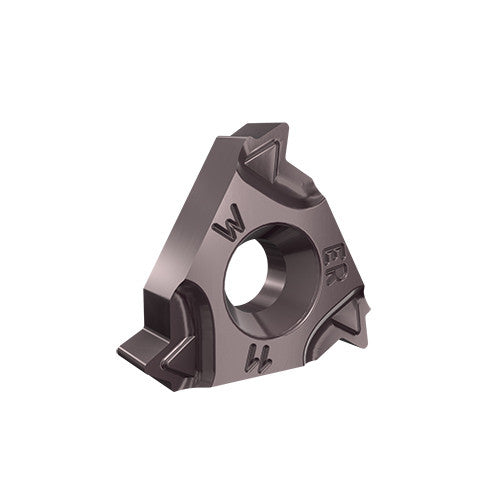

16ER 18W AC22A

16ER 18W AC22A


Item #: FG325902223
Brand: Tool-Flo
Model #: 1455602

Product Specifications
Inscribed Circle Diameter (IC) 3/8″
Chip Breaker Type Z
Insert Length (INSL) 0.63″
Shape Triangle
Threads per Inch (TPI) 18 Threads/"
Cutting Item Count (CICT) 1
Corner Radius (RE) 0.0067″
Threads per Inch Minimum (TPIN) 18 Threads/"
Grade AC22A
Threads per Inch Maximum (TPIX) 18 Threads/"
Coating TiAlN
Tool Type Threading Regular Inserts
Cutting Edge Material Carbide
Measurement Type Inch
Application | External Thread Milling | External Threading | Treading Inserts |
Body Material Carbide
Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys |
Thread Form Type (THFT) WH55
Cutting Direction (HAND) Right Hand
$17.73
