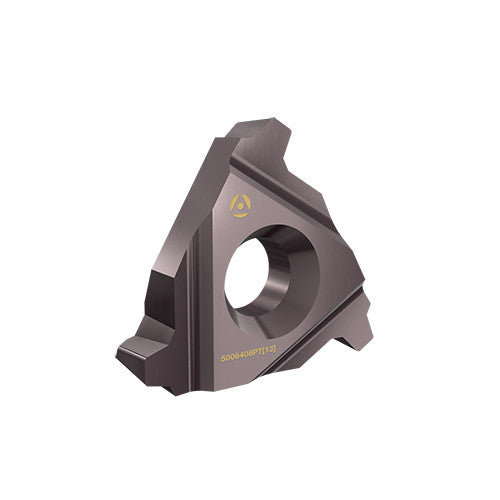

16ER 8STACME PT AC22R
Item #: FG322411844
Brand: Tool-Flo
Model #: 2411844
| Product Specifications | |
|---|---|
| Thread Standard | ACME |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Insert Style | Laydown (LT) |
| Insert Length (INSL) | 0.63″ |
| Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 8 Threads/" |
| Shape | 60° Triangle |
| Insert Thickness (S) | 0.189″ |
| Threads per Inch Minimum (TPIN) | 8 Threads/" |
| Cutting Width (CW) | 0.048″ |
| Threads per Inch Maximum (TPIX) | 8 Threads/" |
| Grade | AC22R AlTiN |
| Tool Type | Threading Regular Inserts |
| Coating | TiAlN |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Application | | Ext Threading Laydown | |
