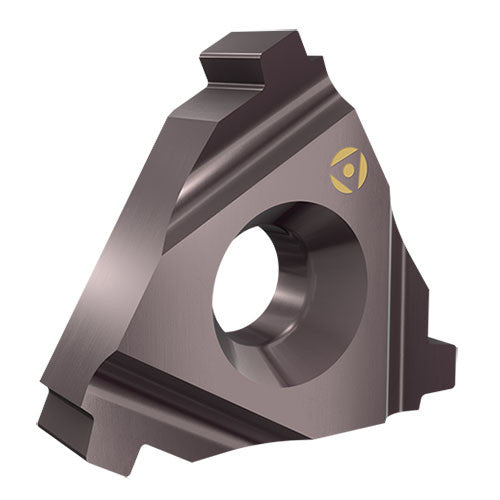

22IR 4.0TR AC22A
Item #: FG315901981
Brand: Tool-Flo
Model #: 1455579
| Product Specifications | |
|---|---|
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 22 mm |
| Chip Breaker Type | Z |
| Thread Pitch (TP) | 4 mm |
| Shape | Triangle |
| Threads per Inch (TPI) | 4 Threads/" |
| Threads per Inch Minimum (TPIN) | 4 Threads/" |
| Corner Radius (RE) | 0.2 mm |
| Threads per Inch Maximum (TPIX) | 4 Threads/" |
| Grade | AC22A |
| Tool Type | Threading Regular Inserts |
| Coating | TiAlN |
| Measurement Type | Metric |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Application | | Internal Thread Milling | Internal Threading lay down | Treading Inserts | |
| Thread Form Type (THFT) | TP30 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
