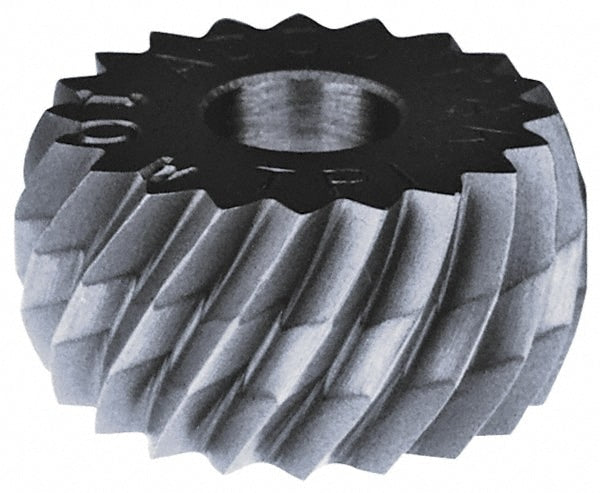

Convex Knurl Wheel: 1-1/4" Dia, 80 ° Tooth Angle, Diagonal, Cobalt
Item #: 02295533
Brand: Made in USA
Model #: PHRV096
Product Specifications
| Knurl Shape | Convex |
| Tooth Pattern | Diagonal |
| Pattern | Right-Hand Diagonal |
| Form Or Cut Type | Form |
| Material | Cobalt |
| Knurl Diameter (mm) | 31.75 |
| Knurl Diameter (Decimal Inch) | 1.2500 |
| Knurl Diameter (Inch) | 1-1/4 |
| Face Width (mm) | 12.70 |
| Face Width (Inch) | 1/2 |
| Hole Diameter (Inch) | 1/2 |
| Hole Diameter (Decimal Inch) | 0.5000 |
| Hole Diameter (Mm) ( - 0 Decimals) | 12.70 |
| Pitch System | Diametral |
| Diametral Pitch | 96 |
| Included Tooth Angle | 80 |
| Finish | Titanium Nitride |
| Helix Angle | 30 |
| Knurl Series | PHV |
| UNSPSC Code | 23242118 |
