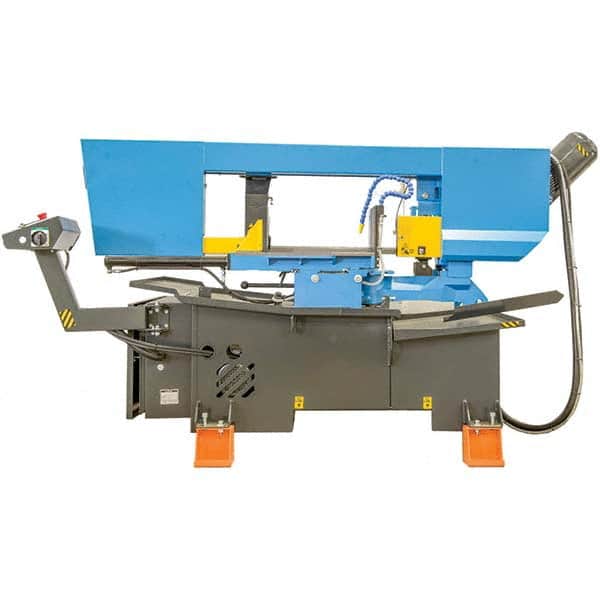

DoALL - Horizontal Bandsaws Machine Style: Semi-Automatic Drive Type: Geared Head
Item #: 55718944
Brand: DoALL
Model #: DS-500SA
Features and Benefits
Semi-automatic saws are similar to manual saws, but the saw head is programmed to automatically rise to the starting position after the cut is completed. The operator must then reposition the material to make another cut.
Geared head drive systems are similar to step pulleys, but are driven by a geared transmission. They offer rapid speed changes by turning a hand dial and feature 3 to 4 fixed speeds
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
Product Specifications
Horizontal Bandsaws; Machine Style: Semi-Automatic ; Drive Type: Geared Head ; Angle of Rotation: 60 ; Maximum Capacity (Rectangular) (Inch): 10.6 x 12.6 ; Maximum Capacity (Rounds) (Inch): 12.2 ; Phase: 3
| Machine Style | Semi-Automatic |
| Drive Type | Geared Head |
| Angle of Rotation | 60 |
| Maximum Capacity (Rectangular) (Inch) | 10.6 x 12.6 |
| Maximum Capacity (Rounds) (Inch) | 12.2 |
| Phase | 3 |
| Voltage | 460 |
| Coolant System | Yes |
| Blade Length (Feet) | 188.00 |
| Blade Thickness (mm) | 34.00 |
| Blade Thickness (Decimal Inch) | 1.2500 |
| Blade Guide Type | Bimetal |
| Blade Speeds (SFPM) | 65 to 328 |
| PSC Code | 3405 |
| Horsepower (HP) | 5.00 |
| Base Width (mm) | 1080.00 |
| Base Width (Decimal Inch) | 43.0000 |
| Base Depth (mm) | 2873.00 |
| Base Depth (Decimal Inch) | 114.0000 |
| Warranty | 1 Year |
