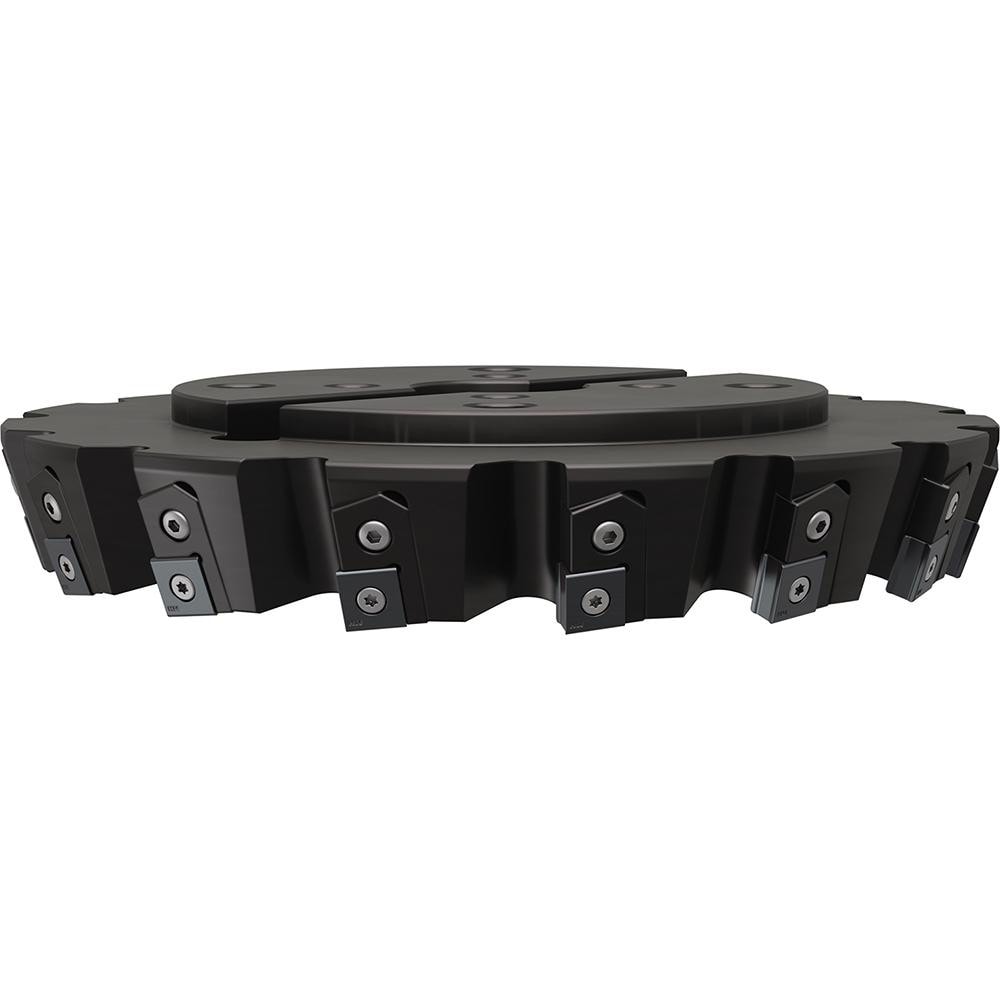

Brand: Widia / Part #: 6317290
Item #: 99554891
Brand: Widia
Model #: 6317290
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 6.2992 |
| Maximum Cutting Diameter (Decimal Inch) | 6.8009 |
| Maximum Depth of Cut (Decimal Inch) | 0.6811 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Lead Angle | 70.000 |
| Compatible Insert Size Code | 201012 |
| Cutter Style | M4070 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative |
| Series | M4070 |
| Hub Diameter (mm) | 90.000 |
| Overall Height (Mm - 5 Decimals) | 63.00000 |
| Maximum Body Diameter (Decimal Inch) | 7.3228 |
| Maximum Body Diameter (mm) | 186.00 |
| Tool Application | Chamfering; Facing |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Complete Insert Compatibility | LNGU |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | M4070D160Z08S40LN20 |
| Number Of Cutter Inserts | 8 |
| Coolant Through | No |
| Number Of Flutes | 8 |
