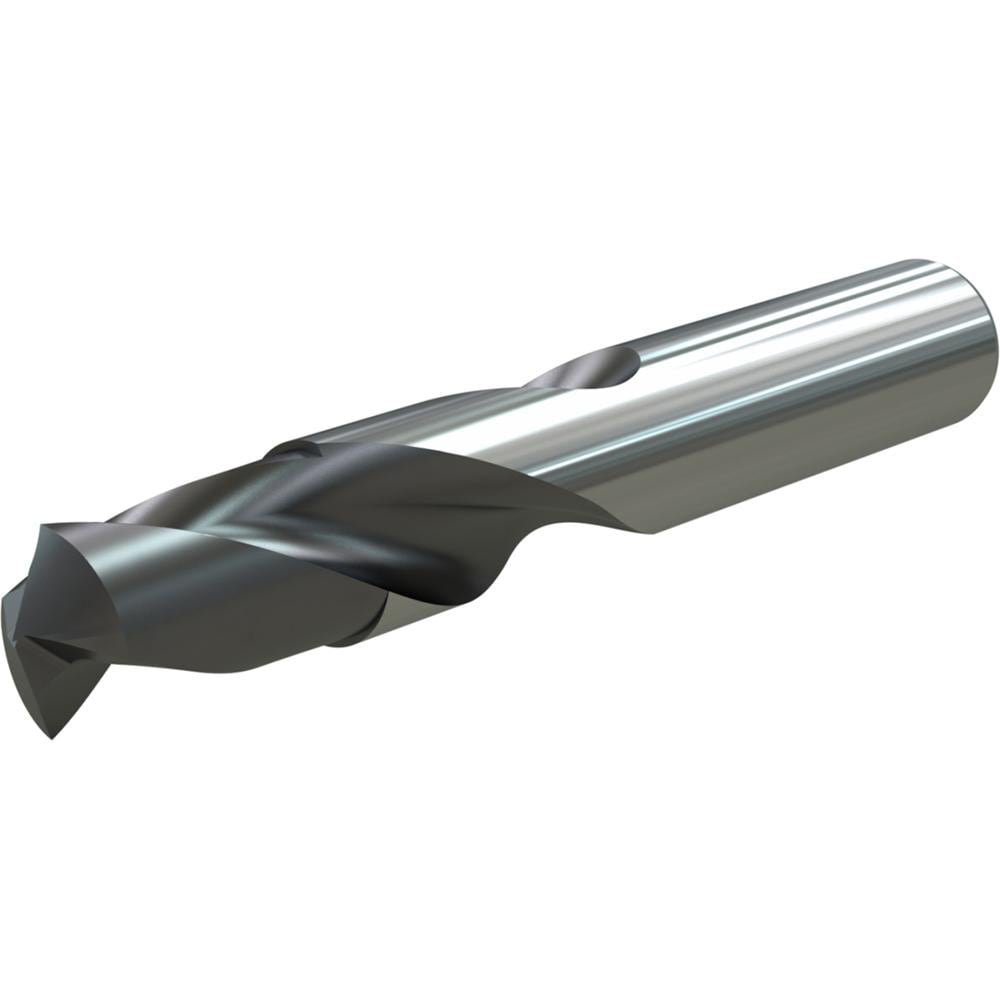

Brand: Widia / Part #: 4140442
Item #: 99705667
Brand: Widia
Model #: 4140442
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.1110 |
| Drill Bit Size (Wire) | #34 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlN |
| Drill Point Angle | 140 |
| Spiral Type | Regular Spiral |
| Flute Type | Helical |
| Point Type | Thinned |
| Coolant Through | Yes |
| Shank Type | Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.1575 |
| Drill Tip Finish/Coating | TiAlN |
| Overall Length (Decimal Inch) | 2.2835 |
| Series | VDS401A |
| Web Thinning | Web-Thinned |
| Drill Length Type | Screw Machine Length |
| Maximum Drilling Depth (Decimal Inch) | 0.4724 |
| Shank Length (Decimal Inch) | 1.1024 |
| Drill Point Length (Decimal Inch) | 0.0178 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | General Purpose |
| Drill Bit Diameter Tolerance | -0.0006/0.0000 in |
| Flute Length (Decimal Inch) | 0.6693 |
| Drill Bit Grade | General Purpose |
| Material Grade | Carbide |
