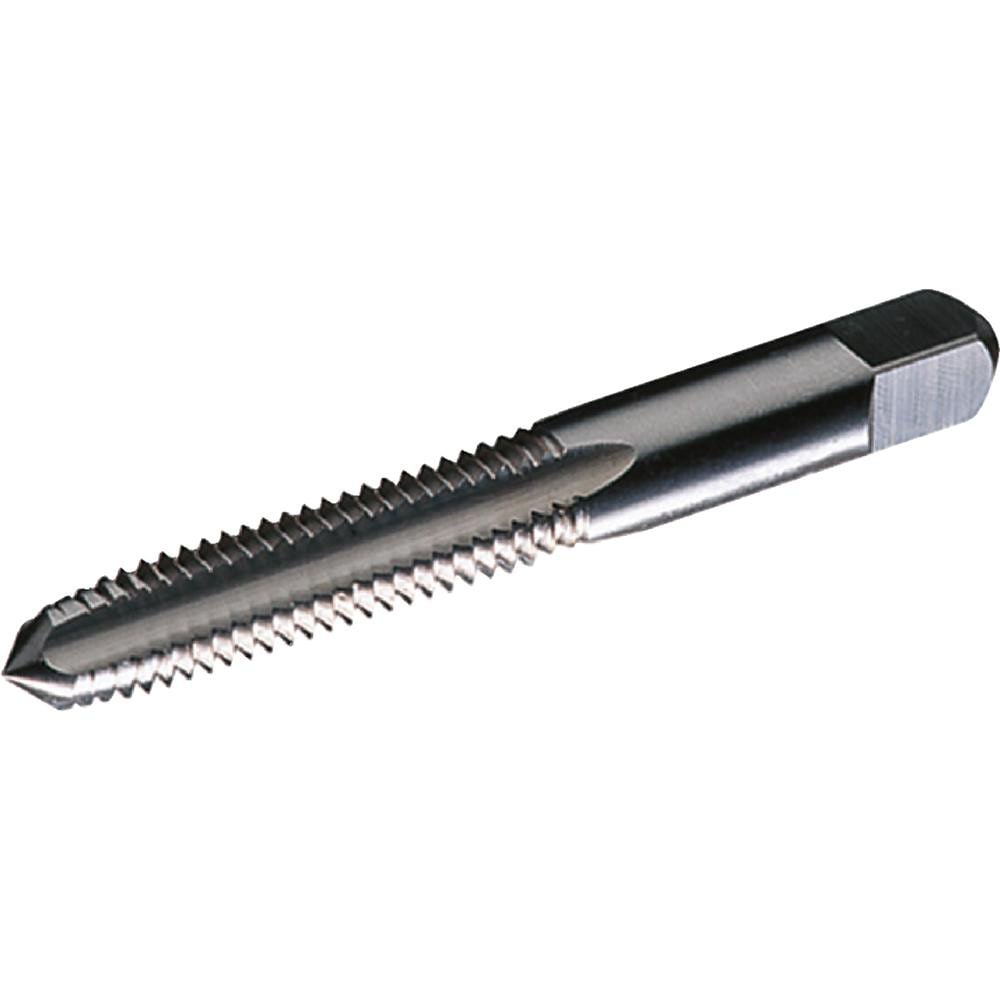

Brand: Widia / Part #: 2751060
Item #: 74789256
Brand: Widia
Model #: 2751060
Product Specifications
| Tap Type | Machine |
| Thread Size (Inch) | #8-32 |
| Class Of Fit | 2B |
| Number Of Flutes | 4 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Coating/Finish | Uncoated |
| Threads per Inch | 32 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | UNC |
| Thread Pitch (Decimal Inch) | 0.0313 |
| Overall Length (Decimal Inch) | 2.1250 |
| Thread Length (Decimal Inch) | 0.7500 |
| Thread Depth (Decimal Inch) | 0.7500 |
| Application | Metal |
| Shank Diameter (Decimal Inch) | 0.1680 |
| Square Length (mm) | 6.35 |
| Square Size (Decimal Inch) | 0.1310 |
| Series | 7305 |
| Shank Length (Decimal Inch) | 1.3750 |
