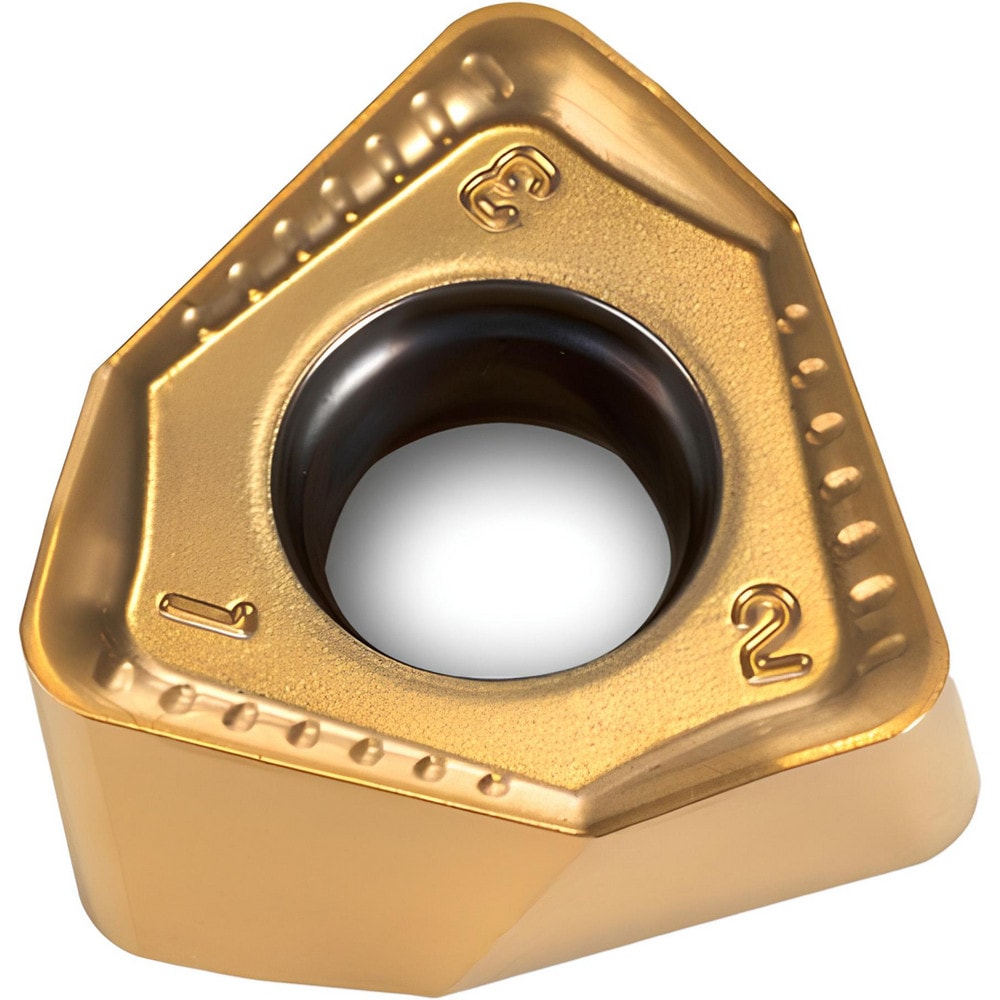

Brand: Ingersoll Cutting Tools / Part #: 5813438

Brand: Ingersoll Cutting Tools / Part #: 5813438


Item #: 67319632
Brand: Ingersoll Cutting Tools
Model #: 5813438

Product Specifications

Insert Style WNGU
Insert Size Code 130616
Insert Material Carbide
Manufacturer Grade IN2510
Thickness (Inch) 17/64
Inscribed Circle (Decimal Inch) 0.5140
Corner Radius (Inch) 1/16
Insert Hand Right Hand
Series WNGU
Coating Process PVD
Maximum Depth of Cut (Decimal Inch) 0.3600
Number Of Cutting Edges 6
Insert Shape Trigon
Rake Negative
Primary Workpiece Material Cast Iron
Primary Workpiece Material Code K
Ansi Code WNGU130616R
Rake Angle 0.000
Manufacturers Catalog Number WNGU130616R IN2510
Cutter Series Compatibility DJ6P; DJ5P; 1DJ1P
Chip Breaker None
Cutting Direction Right Hand
Shape Trigon
Length of Cut (mm) 9.1400
Insert Holding Method Screw
Coating Classification PVD
Single or Double Sided Insert Double
Coating/Finish TiN; TiAlN
Multi-Use Tool Yes
$28.26
