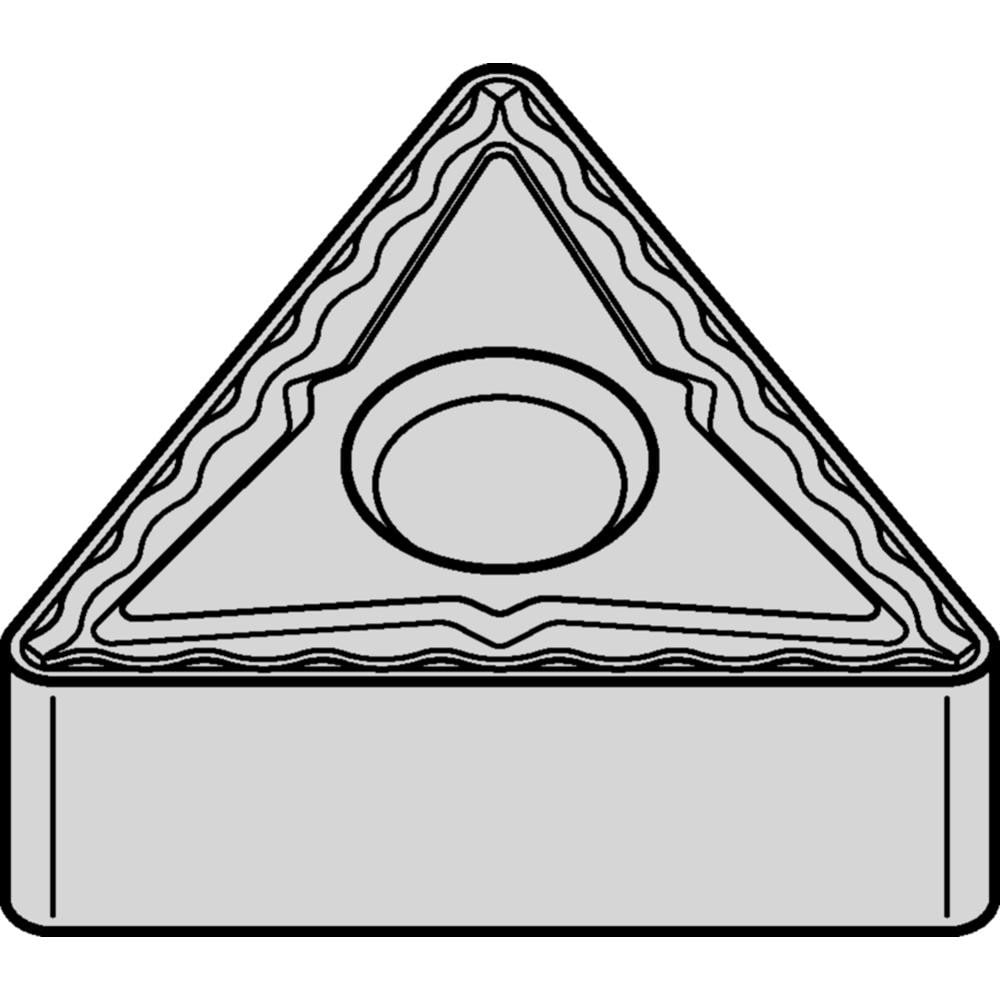

Brand: Widia / Part #: 4167113

Brand: Widia / Part #: 4167113


Item #: 95156022
Brand: Widia
Model #: 4167113

Product Specifications

Insert Style TNMG
Insert Shape Code T
Insert Size Code 333
Insert Shape Triangle
Coating/Finish TiCN; TiN; Al2O3
Manufacturer Grade TN20P
Corner Radius (Decimal Inch) 0.0472
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.1500
Maximum Depth of Cut (Decimal Inch) 0.3248
Inscribed Circle (Decimal Inch) 0.3750
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1875
Clearance Code N
Tolerance Code M
Included Angle 60.00
Relief Angle 0.000
Series TNMG
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.6496
Number Of Cutting Edges 6
Secondary Workpiece Material Cast Iron; Steel
Secondary Workpiece Material Code P; K
Ansi Code TNMG3336P
Iso Code TNMG1604126P
Manufacturers Catalog Number TNMG3336P
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker 6P
Style TNMG
Width (Decimal Inch - 4 Decimals) 0.3750
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$8.36
