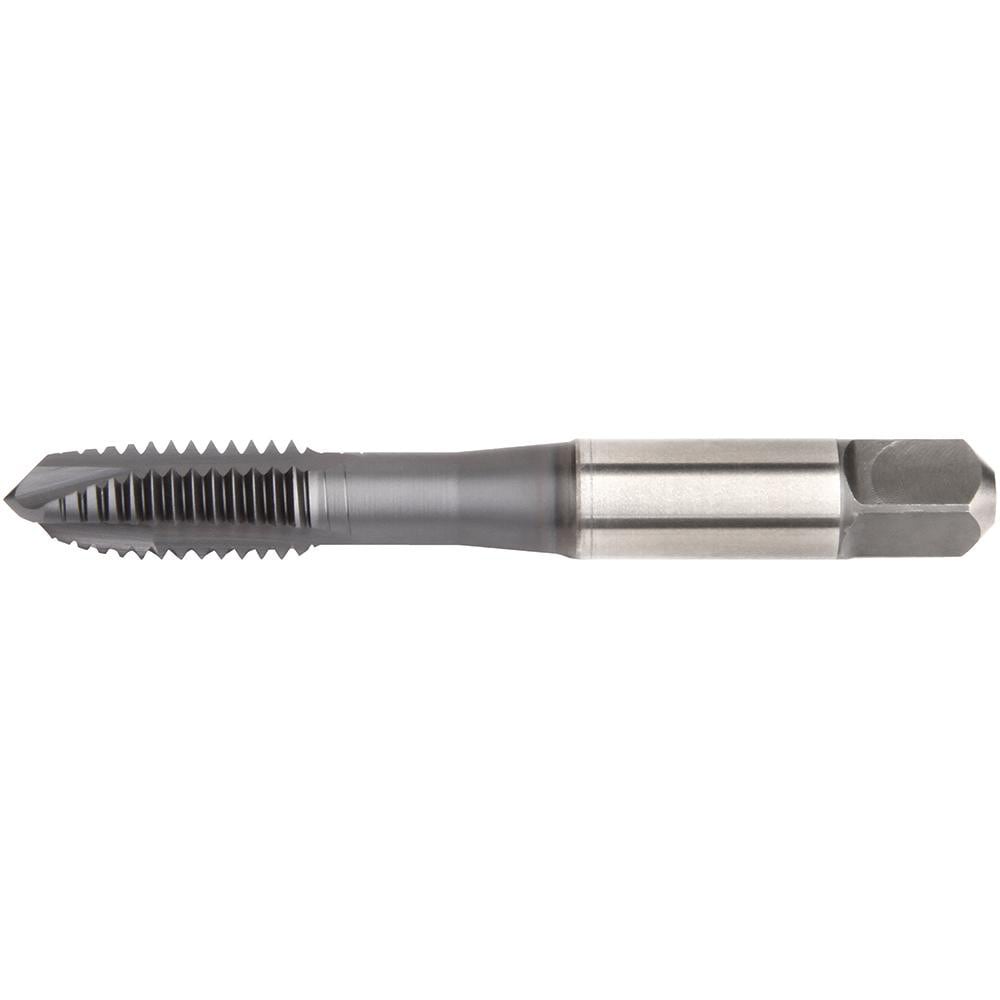

Brand: Widia / Part #: 5365809

Brand: Widia / Part #: 5365809


Item #: 91012963
Brand: Widia
Model #: 5365809

Product Specifications

Thread Size (Inch) 1/4-20
Number Of Flutes 3
Chamfer Plug
Thread Limit H3
Class Of Fit H3
Coating/Finish Uncoated
Threads per Inch 20
Material High Speed Steel
Coolant Through No
Thread Direction Right Hand
Thread Depth (Decimal Inch) 1.0000
Thread Pitch (Decimal Inch) 0.0500
Thread Standard UNC
Material Grade WU40EG
Thread Length (Decimal Inch) 0.6300
Overall Length (Decimal Inch) 2.5000
Shank Diameter (Decimal Inch) 0.2550
Square Size (Decimal Inch) 0.1890
Material Application Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel
Series VT-SPO
